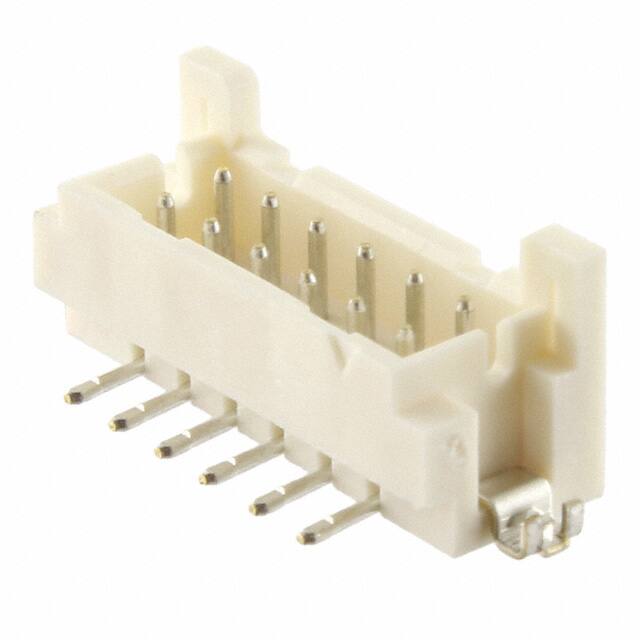

DF11CZ-12DP-2V(27)

Teknik Özellikler

Insulation Resistance

1GOhm

Contact Materials

Brass

Sıra Sayısı

2

Özellikler

Pick and Place, Solder Retention

Contact Finish Mating

Tin

Connector Type

Header

Material Flammability Rating

UL94 V-0

Contact Gender

Male

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

RoHS Durumu

RoHS Compliant

Insulation Height

0.283 7.19mm

Seri

DF11

Housing Material

Polyamide

HTS Kodu

8536.69.40.40

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Pitch Mating

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Reliability

COMMERCIAL

Rated Current Signal

2A

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Shape

Circular

Kurşunsuz

Lead Free

Orientation

Straight

Çalışma Sıcaklığı

-30°C~85°C

Renk

Black

Uzunluk

19.5mm
