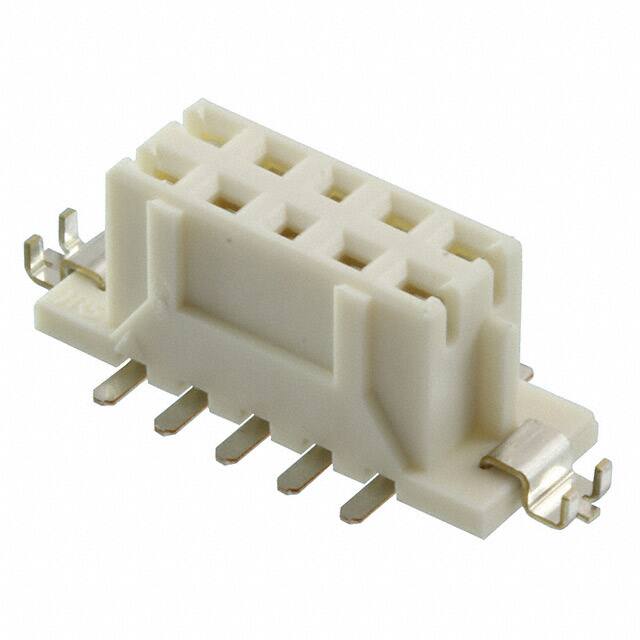

DF11CZ-10DS-2V(22)

Teknik Özellikler

Insulation Resistance

1GOhm

Contact Resistance

30mOhm

Contact Shape

Square

Özellikler

Pick and Place, Solder Retention

Orientation

Straight

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Renk

Black

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-30°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Post

78.7μin 2.00μm

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Female

Terminal

Solder

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Fastening Type

Friction Lock

Parça Durumu

Active

Number Of Positions Loaded

All

Voltage Rated Ac

30V

Nominal Gerilim

250V

ECCN Kodu

EAR99

Radyasyon Dayanımı

No

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

DF11

Insulation Height

0.234 5.95mm

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Current Rating Amps

2A

Akım Değeri

1A

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

HTS Kodu

8536.69.40.40

Pozisyon Sayısı

10

Montaj

Surface Mount

Reach Svhc

No SVHC
