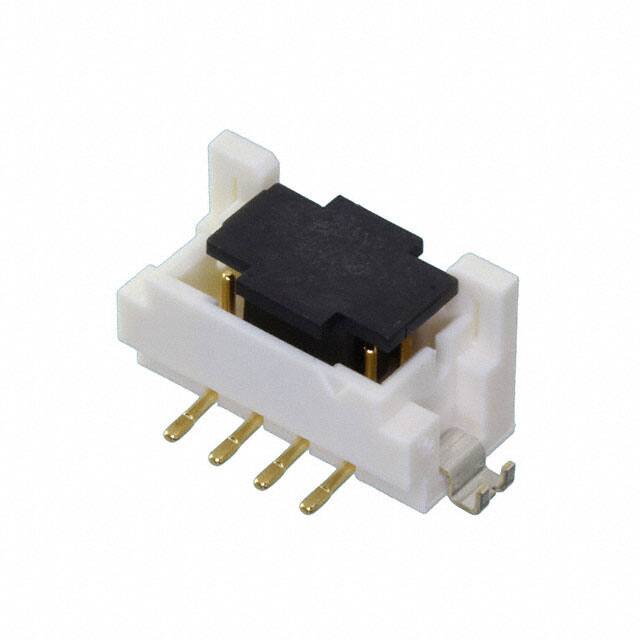

DF11C-8DP-2V(57)

Teknik Özellikler

Rated Current Signal

2A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Housing Material

Polyamide

Seri

DF11

Insulation Height

0.283 7.19mm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Mating

8.00μin 0.203μm

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Male

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Connector Type

Header

Max Voltage Rating Ac

30V

Contact Finish Mating

Gold

Özellikler

Pick and Place, Solder Retention

Contact Materials

Brass

Sıra Sayısı

2

Insulation Resistance

1000000000Ohm

Mating Contact Pitch

0.079 inch

Filter Feature

NO

Insulation Color

Beige

Iec Conformance

NO

Yayın Yılı

2010

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Total Number Of Contacts

8

Pozisyon Sayısı

8

Number Of Pcb Rows

2

Max Current Rating

2A
