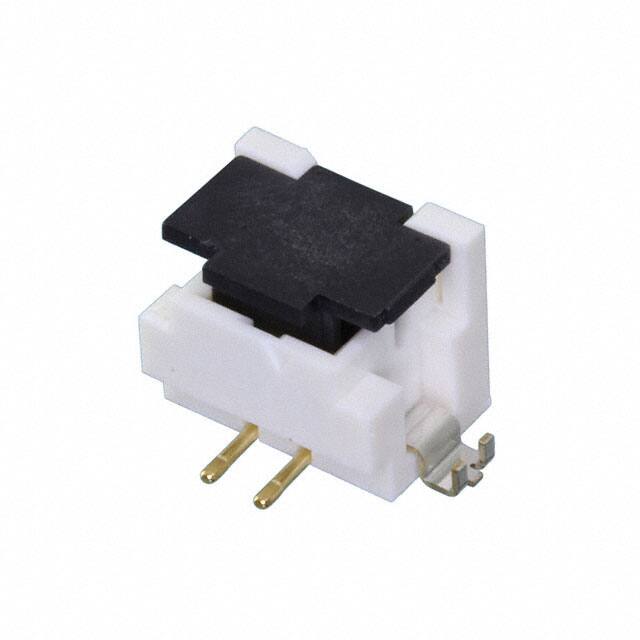

DF11C-4DP-2V(57)

Teknik Özellikler

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Wire Gauge Max

30 AWG

Nominal Gerilim

250V

Number Of Positions Loaded

All

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Kurşunsuz Kodu

yes

Contact Shape

Circular

Contact Resistance

30mOhm

Çalışma Sıcaklığı

-30°C~85°C

Orientation

Straight

Kurşunsuz

Lead Free

Uzunluk

11.5mm

Total Number Of Contacts

4

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2010

Mating Contact Pitch

0.079 inch

Iec Conformance

NO

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

6.2mm

Contact Type

Male Pin

Reference Standard

UL, CSA

Akım Değeri

2A

Durability

50 Cycles

Max Current Rating

2A

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Mil Conformance

NO

Pozisyon Sayısı

4

Number Of Pcb Rows

2

REACH Uyumluluk Kodu

unknown

Connector Type

Header

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Contact Gender

Male
