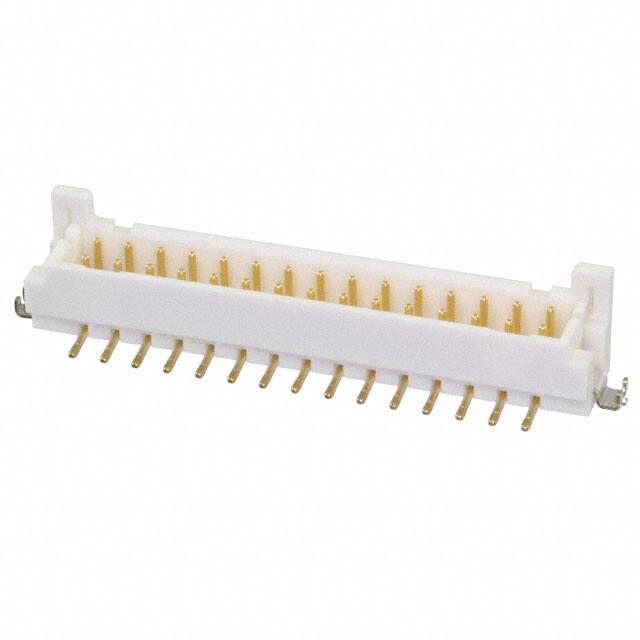

DF11C-30DP-2V(57)

Teknik Özellikler

Yayın Yılı

2010

Filter Feature

NO

Insulation Color

Beige

Iec Conformance

NO

Mating Contact Pitch

0.079 inch

Total Number Of Contacts

30

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm

Montaj Tipi

Surface Mount

Mil Conformance

NO

Style

Board to Board or Cable

Number Of Pcb Rows

2

Pozisyon Sayısı

30

Reference Standard

UL, CSA

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Number Of Positions Loaded

All

Nominal Gerilim

250V

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Renk

Beige, Black

Çalışma Sıcaklığı

-30°C~85°C

Kurşunsuz Kodu

yes

Contact Shape

Circular

Number Of Conductors

ONE

Reliability

COMMERCIAL

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Body Length Or Diameter

1.358 inch

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Seri

DF11

Insulation Height

0.283 7.19mm
