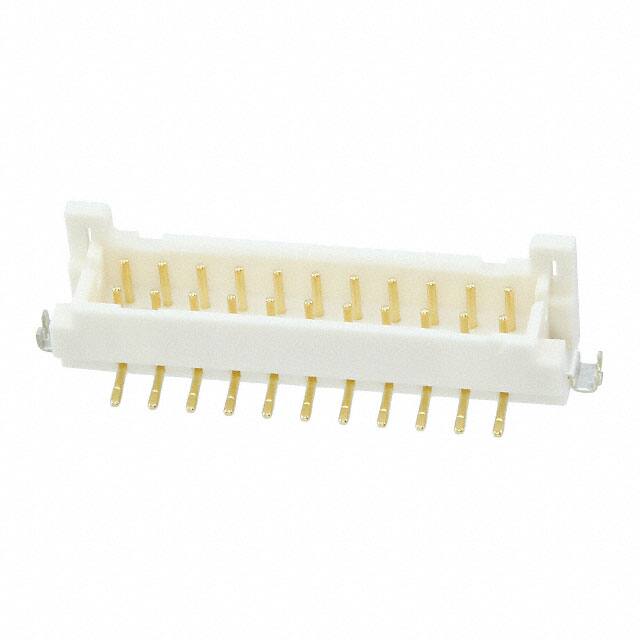

DF11C-22DP-2V(57)

Teknik Özellikler

Yayın Yılı

2017

Iec Conformance

NO

Insulation Color

Beige

Filter Feature

NO

Mating Contact Pitch

0.079 inch

Total Number Of Contacts

22

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm

Mil Conformance

NO

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Number Of Pcb Rows

2

Pozisyon Sayısı

22

Contact Type

Male Pin

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Mixed Contacts

NO

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

250V

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Çalışma Sıcaklığı

-30°C~85°C

Renk

Beige, Black

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Shape

Circular

Number Of Conductors

ONE

Reliability

COMMERCIAL

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Body Length Or Diameter

1.043 inch

Dielectric Withstanding Voltage

650VAC V

Ul Flammability Code

94V-0

Withdrawl Forcemin

.3058 N
