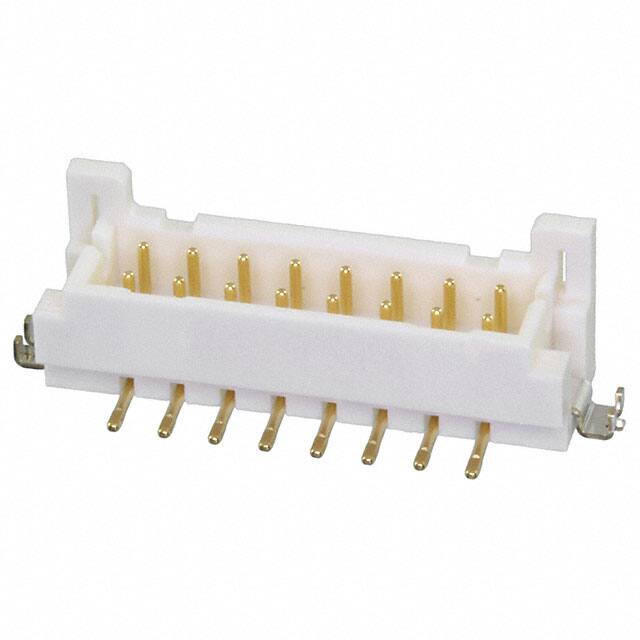

DF11C-16DP-2V(57)

Teknik Özellikler

Kurşunsuz Kodu

yes

Contact Shape

Circular

Contact Resistance

30mOhm

Çalışma Sıcaklığı

-30°C~85°C

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Fabrika Tedarik Süresi

10 Weeks

Wire Gauge Max

30 AWG

Nominal Gerilim

250V

Number Of Positions Loaded

All

Mixed Contacts

NO

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Reference Standard

UL, CSA

Akım Değeri

2A

Durability

50 Cycles

Style

Board to Board or Cable

Mil Conformance

NO

Montaj Tipi

Surface Mount

Pozisyon Sayısı

16

Number Of Pcb Rows

2

Total Number Of Contacts

16

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2014

Mating Contact Pitch

0.079 inch

Iec Conformance

NO

Insulation Color

Beige

Filter Feature

NO

Insulation Resistance

1000000000Ohm

Contact Finish Mating

Gold

Contact Materials

Brass

Sıra Sayısı

2

Özellikler

Pick and Place, Solder Retention

REACH Uyumluluk Kodu

unknown

Connector Type

Header

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE
