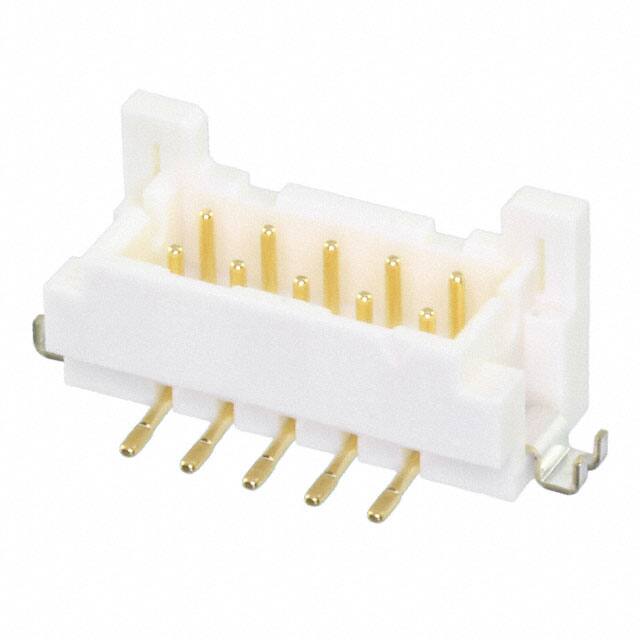

DF11C-10DP-2V(57)

Teknik Özellikler

Withdrawl Forcemin

.3058 N

RoHS Durumu

RoHS Compliant

Seri

DF11

Insulation Height

0.283 7.19mm

Housing Material

Polyamide

Number Of Conductors

ONE

Reliability

COMMERCIAL

Rated Current Signal

2A

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Flammability Rating

UL94 V-0

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

650VAC V

Ul Flammability Code

94V-0

Contact Materials

Brass

Sıra Sayısı

2

Özellikler

Pick and Place, Solder Retention

Contact Finish Mating

Gold

Insulation Resistance

1GOhm

Contact Gender

Male

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Fastening Type

Detent Lock

Contact Finish Thickness Mating

8.00μin 0.203μm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Connector Type

Header

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Montaj Tipi

Surface Mount

Max Current Rating

2A

Style

Board to Board or Cable

Number Of Pcb Rows

2

Pozisyon Sayısı

10

Contact Type

Male Pin

Reference Standard

UL, CSA

Depth

6.2mm

Nem Hassasiyeti (MSL)

1 (Unlimited)
