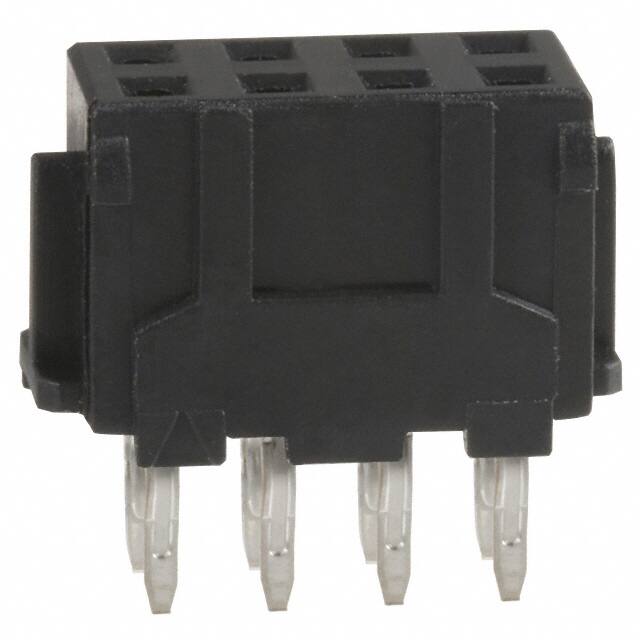

DF11-8DS-2DSA(05)

Teknik Özellikler

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.8mm 8.45mm

Yayın Yılı

2001

Akım Değeri

2A

Contact Type

Female Socket

Depth

5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

8

Montaj Tipi

Through Hole

Max Current Rating

2A

Style

Board to Board or Cable

Fabrika Tedarik Süresi

10 Weeks

Contact Finish Thickness Post

78.7μin 2.00μm

Terminal

Press-Fit, Solder

Ambalaj

Tray

Number Of Positions Loaded

All

Nominal Gerilim

250V

ECCN Kodu

EAR99

Contact Resistance

30mOhm

Contact Shape

Square

Uzunluk

10mm

Kurşunsuz

Lead Free

Orientation

Straight

Çalışma Sıcaklığı

-30°C~85°C

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Montaj

Through Hole

Reach Svhc

No SVHC

Flammability Rating

UL94 V-0

Applications

General Purpose

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.244 6.20mm

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Radyasyon Dayanımı

No

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Mating

78.7μin 2.00μm

Fastening Type

Friction Lock
