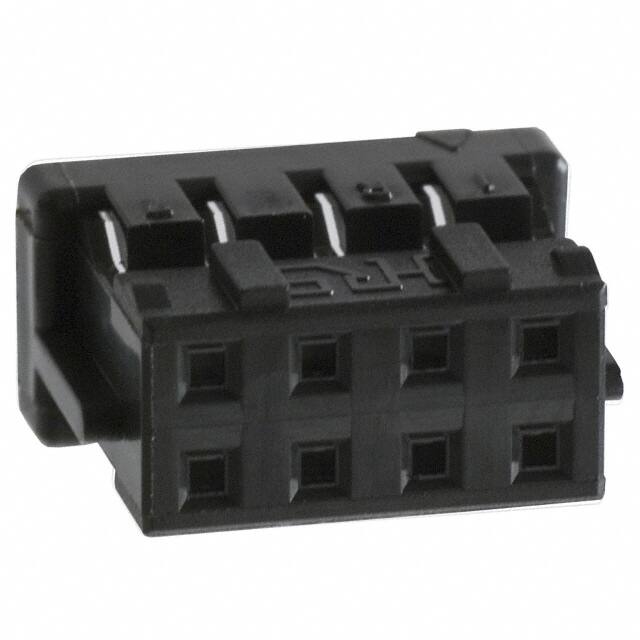

DF11-8DS-2C

Teknik Özellikler

Voltage Rated Ac

30V

Parça Durumu

Active

Option

WITH CABLE ASSEMBLY

Connector Type

Receptacle

Sıra Sayısı

2

Contact Materials

NOT SPECIFIED

Contact Finish Mating

TIN

Insulation Resistance

1GOhm

Rated Current Signal

2A

Reliability

COMMERCIAL

Additional Feature

100 PCS. PER PACK

Body Length Or Diameter

0.394 inch

Dielectric Withstanding Voltage

650VAC V

JESD-609 Kodu

e3

Pitch

0.079 2.00mm

Note

Contacts Not Included

Contact Design

PREASSEM CONN

Seri

DF11

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Housing Material

Plastic

Wire Size Min

30 AWG

Ambalaj

Bulk

Mixed Contacts

NO

Contact Termination

Crimp

Fabrika Tedarik Süresi

8 Weeks

Mounting Option1

LOCKING MECH

Polarization Key

POLARIZED RIB(S)

Din Conformance

NO

Kurşunsuz

Lead Free

Orientation

Straight

Renk

Black

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Row Spacing

0.079 (2.00mm)

Filter Feature

NO

Iec Conformance

NO

Contact Plating

Tin

Yayın Yılı

2008

Total Number Of Contacts

8
