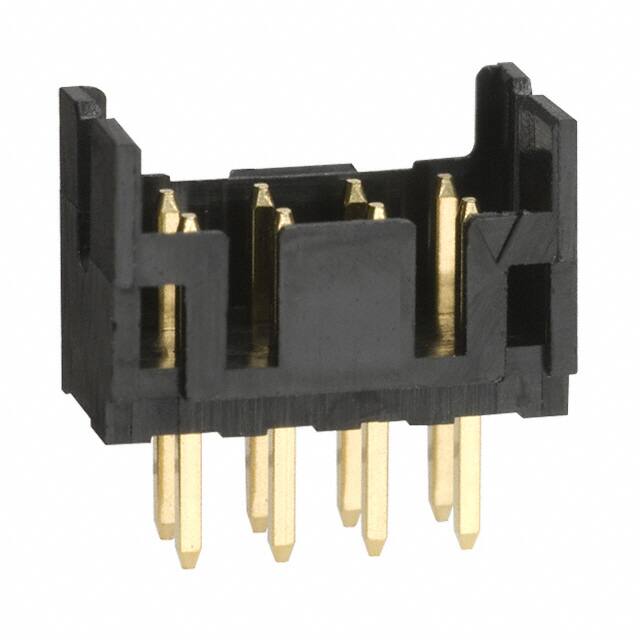

DF11-8DP-2DSA(01)

Teknik Özellikler

Pozisyon Sayısı

8

Body Breadth

0.197 inch

Number Of Pcb Rows

2

Style

Board to Board or Cable

Max Current Rating

2A

Overall Contact Length

0.299 7.60mm

Mil Conformance

NO

Montaj Tipi

Through Hole

Akım Değeri

2A

Durability

50 Cycles

Depth

5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL, CSA

Contact Type

Male Pin

Mating Contact Pitch

0.079 inch

Filter Feature

NO

Iec Conformance

NO

Yayın Yılı

2010

Stack Height Mating

7.55 7.8mm 8.9mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

Polyamide (PA), Nylon

Uzunluk

10mm

Çalışma Sıcaklığı

-30°C~85°C

Orientation

Straight

Kurşunsuz

Lead Free

Contact Shape

Square

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Number Of Positions Loaded

All

Nominal Gerilim

250V

ECCN Kodu

EAR99

Terminal

Solder

Ambalaj

Bulk

Mixed Contacts

NO

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Contact Lengthmating

0.118 3.00mm

Housing Material

Polyamide

Insulation Height

0.260 6.60mm
