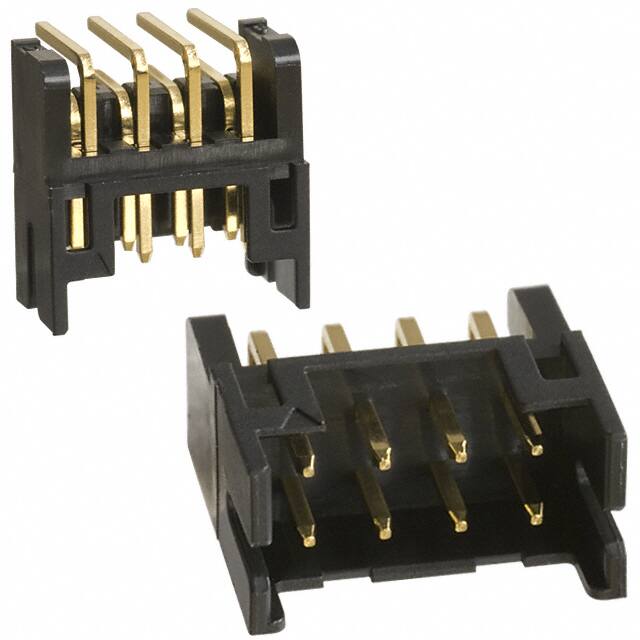

DF11-8DP-2DS(52)

Teknik Özellikler

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

8.00μin 0.203μm

Fastening Type

Detent Lock

Contact Length Post

0.118 3.00mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Yükseklik

4.4mm

Material Flammability Rating

UL94 V-0

Connector Type

Header

Genişlik

10mm

Sıra Sayısı

2

Contact Materials

Brass

Contact Finish Mating

Gold

Gender

Male

Insulation Resistance

1000000000Ohm

Housing Color

Black

Number Of Conductors

ONE

Rated Current Signal

2A

Reliability

COMMERCIAL

Montaj

Through Hole

Shrouding

Shrouded - 4 Wall

Dielectric Withstanding Voltage

650VAC V

JESD-609 Kodu

e4

Pitch Mating

0.079 2.00mm

Ul Flammability Code

94V-0

Radyasyon Dayanımı

No

Insulation Height

0.197 5.00mm

Lead Pitch

2mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Housing Material

Plastic

Ambalaj

Tube

Terminal

Solder

Mixed Contacts

NO

Number Of Positions Loaded

All

Nominal Gerilim

250V

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks
