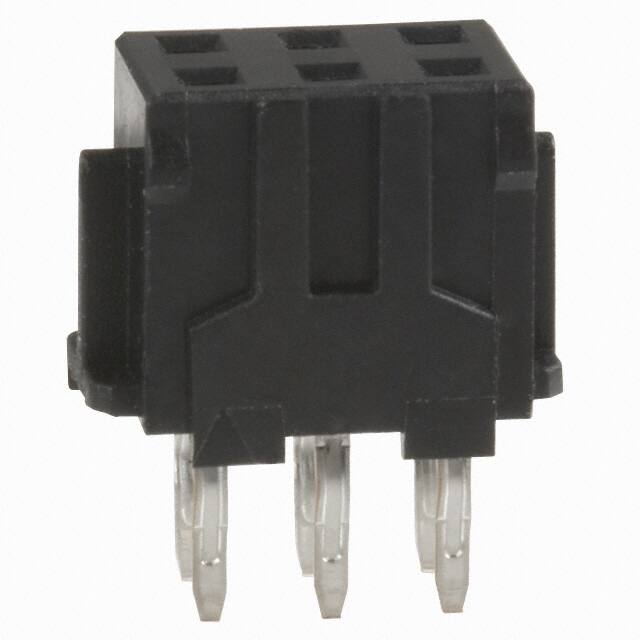

DF11-6DS-2DSA(06)

Teknik Özellikler

Yayın Yılı

2010

Mating Contact Pitch

0.079 inch

Iec Conformance

NO

Filter Feature

NO

Stack Height Mating

7.8mm 8.45mm

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Max Current Rating

2A

Mil Conformance

NO

Montaj Tipi

Through Hole

Pozisyon Sayısı

6

Body Breadth

0.197 inch

Number Of Pcb Rows

2

Depth

5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Reference Standard

UL, CSA

Akım Değeri

2A

Contact Finish Post

Tin

Durability

50 Cycles

Nominal Gerilim

250V

ECCN Kodu

EAR99

Number Of Positions Loaded

All

Mixed Contacts

NO

Terminal

Press-Fit, Solder

Ambalaj

Tray

Din Conformance

NO

Polarization Key

HOUSING SIDE

Fabrika Tedarik Süresi

11 Weeks

Contact Finish Thickness Post

78.7μin 2.00μm

Çalışma Sıcaklığı

-30°C~85°C

Kurşunsuz

Lead Free

Orientation

Straight

Uzunluk

8mm

Contact Shape

Square

Contact Resistance

30mOhm

Reliability

COMMERCIAL

Rated Current Signal

2A

Number Of Conductors

ONE

Applications

General Purpose
