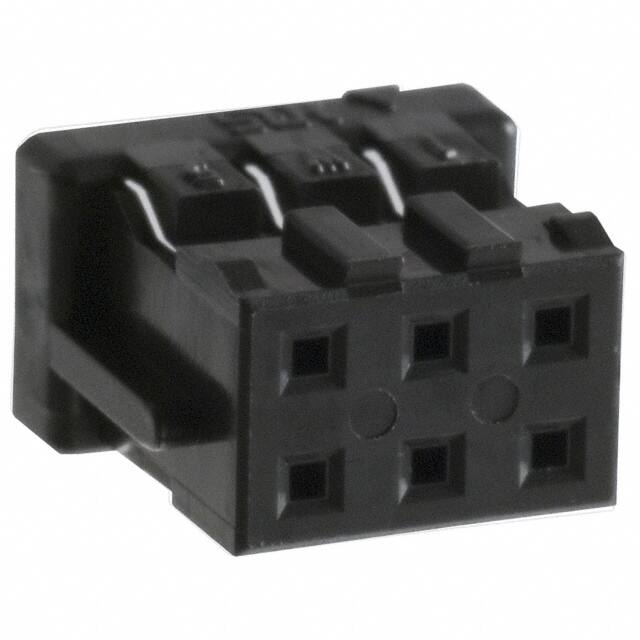

DF11-6DS-2C

Teknik Özellikler

Body Breadth

0.197 inch

Pozisyon Sayısı

6

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Durability

30 Cycles

Operating Temperature Min

-30°C

Contact Type

Female Socket

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Filter Feature

NO

Contact Plating

Tin

Yayın Yılı

2008

Total Number Of Contacts

6

Orientation

Straight

Kurşunsuz

Lead Free

Renk

Black

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Row Spacing

0.079 (2.00mm)

Mixed Contacts

NO

Ambalaj

Bulk

Contact Termination

Crimp

Mounting Option1

LOCKING MECH

Fabrika Tedarik Süresi

8 Weeks

Polarization Key

POLARIZED RIB(S)

Din Conformance

NO

RoHS Durumu

RoHS Compliant

Lead Pitch

2mm

Seri

DF11

Housing Material

Plastic

Withdrawl Forcemin

.3058 N

Wire Size Min

30 AWG

Reliability

COMMERCIAL

Rated Current Signal

2A

JESD-609 Kodu

e3

Body Length Or Diameter

0.315 inch

Ul Flammability Code

94V-0

Pitch

0.079 2.00mm

Contact Design

PREASSEM CONN
