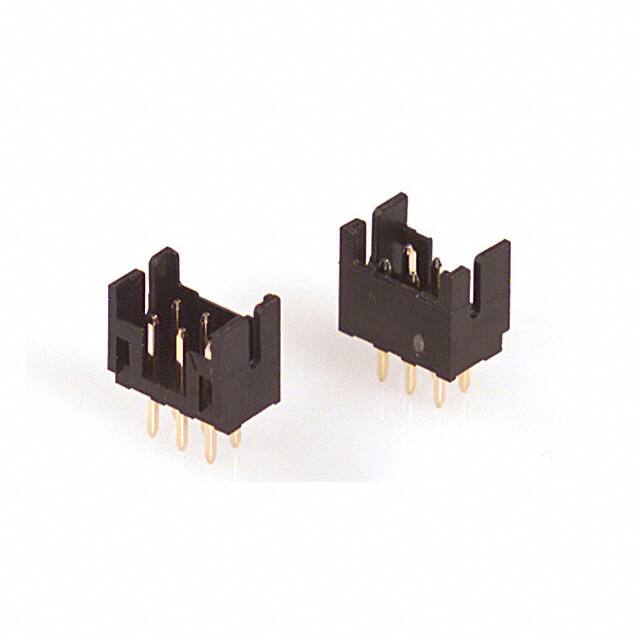

DF11-6DP-2DSA(01)

Teknik Özellikler

Reference Standard

UL, CSA

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

5mm

Durability

50 Cycles

Akım Değeri

2A

Montaj Tipi

Through Hole

Mil Conformance

NO

Overall Contact Length

0.299 7.60mm

Max Current Rating

2A

Style

Board to Board or Cable

Number Of Pcb Rows

2

Body Breadth

0.197 inch

Pozisyon Sayısı

6

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.55 7.8mm 8.9mm

Yayın Yılı

2010

Filter Feature

NO

Iec Conformance

NO

Mating Contact Pitch

0.079 inch

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Shape

Square

Orientation

Straight

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-30°C~85°C

Uzunluk

8mm

Fabrika Tedarik Süresi

12 Weeks

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Ambalaj

Bulk

Terminal

Solder

Mixed Contacts

NO

Number Of Positions Loaded

All

Nominal Gerilim

250V

Radyasyon Dayanımı

No

Withdrawl Forcemin

.3058 N

Insulation Height

0.260 6.60mm

Lead Pitch

2mm
