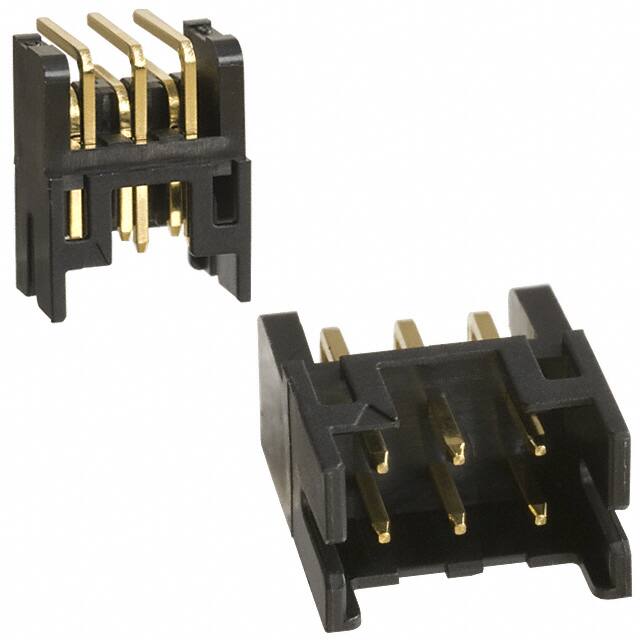

DF11-6DP-2DS(52)

Teknik Özellikler

Terminal

Solder

Ambalaj

Tube

Mixed Contacts

NO

Number Of Positions Loaded

All

Nominal Gerilim

250V

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Uzunluk

8mm

Kurşunsuz

Lead Free

Orientation

Right Angle

Çalışma Sıcaklığı

-40°C~85°C

Contact Resistance

30mOhm

Contact Shape

Square

Kurşunsuz Kodu

yes

Filter Feature

NO

Iec Conformance

NO

Mating Contact Pitch

0.079 inch

Yayın Yılı

2010

Insulation Materials

Polyamide (PA), Nylon

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Body Breadth

0.197 inch

Number Of Pcb Rows

2

Pozisyon Sayısı

6

Mil Conformance

NO

Montaj Tipi

Through Hole, Right Angle

Style

Board to Board or Cable

Max Current Rating

2A

Durability

50 Cycles

Akım Değeri

2A

Reference Standard

UL, CSA

Contact Type

Male Pin

Depth

10mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness Mating

8.00μin 0.203μm

Fastening Type

Detent Lock

Contact Length Post

0.118 3.00mm

Parça Durumu

Active

Yükseklik

5mm

Pcb Contact Pattern

RECTANGULAR
