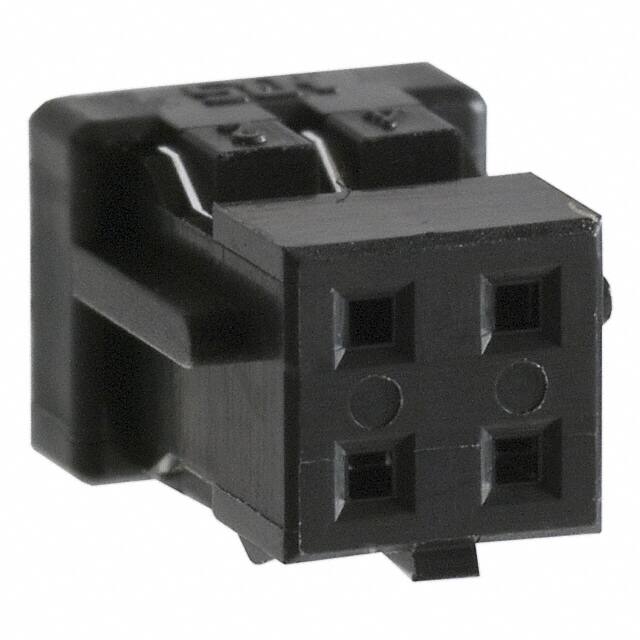

DF11-4DS-2C

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Seri

DF11

Wire Size Min

30 AWG

Withdrawl Forcemin

.3058 N

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

650VAC V

Note

Contacts Not Included

Contact Design

PREASSEM CONN

Pitch

0.079 2.00mm

Reliability

COMMERCIAL

Additional Feature

100 PCS. PER PACK

Rated Current Signal

2A

Insulation Resistance

1GOhm

Contact Finish Mating

TIN

Contact Materials

NOT SPECIFIED

Sıra Sayısı

2

Connector Type

Receptacle

Voltage Rated Ac

30V

Parça Durumu

Active

Option

WITH CABLE ASSEMBLY

Operating Temperature Max

85°C

Durability

30 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Temperature Min

-30°C

Contact Type

Female Socket

Reference Standard

UL, CSA

Pozisyon Sayısı

4

Body Breadth

0.197 inch

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Insulation Materials

POLYAMIDE

Total Number Of Contacts

4

Contact Plating

Tin

Iec Conformance

NO

Filter Feature

NO

Yayın Yılı

2008

Contact Resistance

30mOhm

Row Spacing

0.079 (2.00mm)

Kurşunsuz Kodu

yes

Renk

Black
