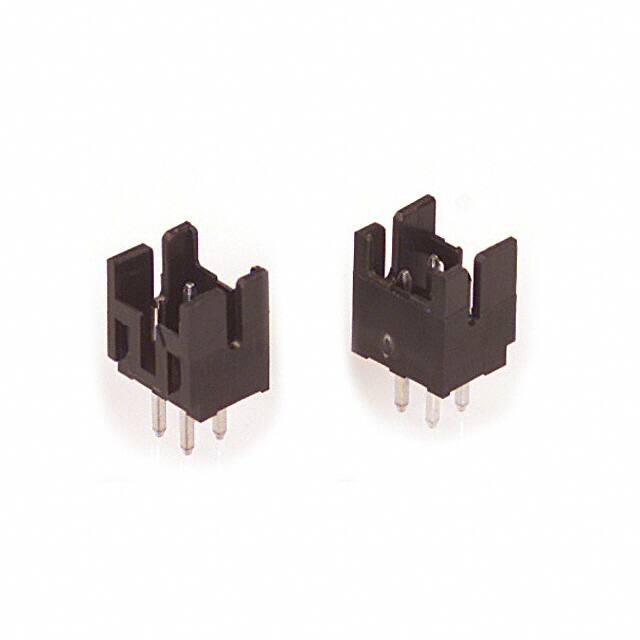

DF11-4DP-2DSA(24)

Teknik Özellikler

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Montaj

Through Hole

Rated Current Signal

2A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Housing Material

Polyamide

Contact Lengthmating

0.118 3.00mm

Insulation Height

0.260 6.60mm

Lead Pitch

2mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Connector Type

Header

Parça Durumu

Active

Voltage Rated Ac

30V

Contact Length Post

0.118 3.00mm

Pcb Contact Pattern

RECTANGULAR

Yükseklik

6.9mm

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Male

Housing Color

Black

Insulation Resistance

1GOhm

Contact Finish Mating

Tin

Sıra Sayısı

2

Contact Materials

Brass

Stack Height Mating

7.55 7.8mm 8.9mm

Insulation Materials

Polyamide (PA), Nylon

Mating Contact Pitch

0.079 inch

Filter Feature

NO

Iec Conformance

NO
