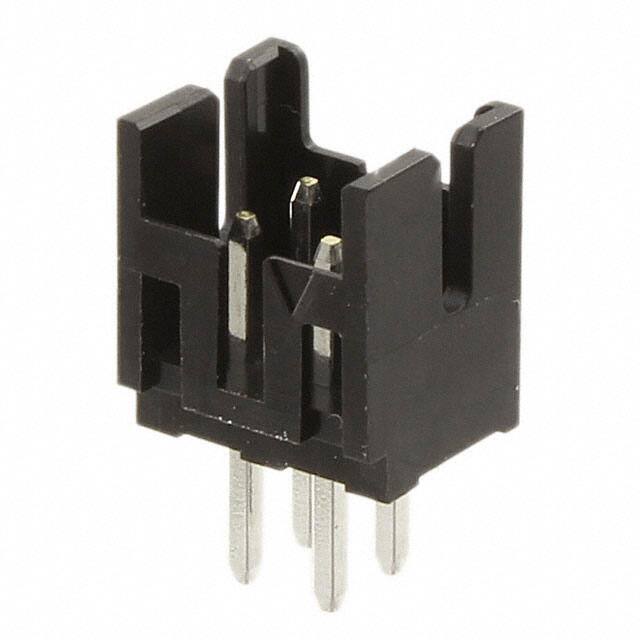

DF11-4DP-2DSA(08)

Teknik Özellikler

Number Of Conductors

ONE

Reliability

COMMERCIAL

Additional Feature

ROW INSERTION PRODUCT

Rated Current Signal

2A

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

650VAC V

Montaj

Through Hole

Shrouding

Shrouded - 4 Wall

RoHS Durumu

RoHS Compliant

Insulation Height

0.260 6.60mm

Seri

DF11

Contact Lengthmating

0.118 3.00mm

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Yükseklik

6.6mm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Contact Length Post

0.118 3.00mm

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Connector Type

Header

Gender

Male

Contact Materials

Brass

Sıra Sayısı

2

Contact Finish Mating

Tin

Housing Color

Black

Insulation Resistance

1GOhm

Iec Conformance

NO

Filter Feature

NO

Mating Contact Pitch

0.079 inch

Yayın Yılı

2010

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.55 7.8mm 8.9mm

Number Of Pcb Rows

2

Body Breadth

0.197 inch

Pozisyon Sayısı

4
