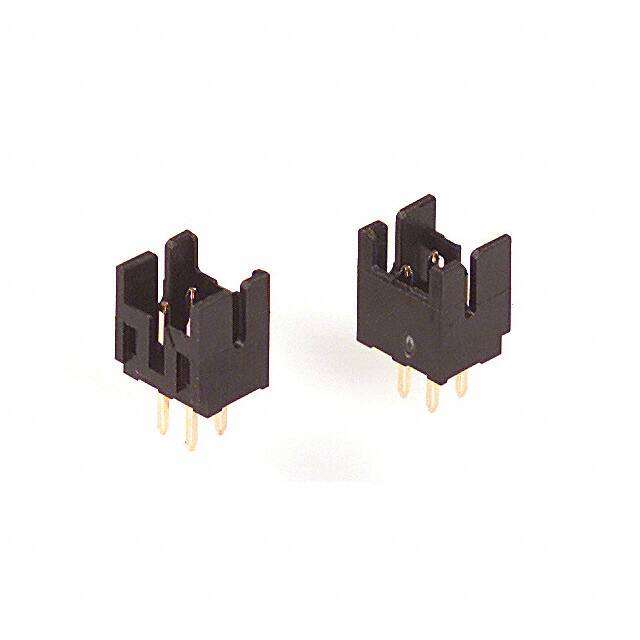

DF11-4DP-2DSA(01)

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Housing Color

Black

Contact Materials

Brass

Sıra Sayısı

2

Contact Finish Mating

Gold

Gender

Male

Connector Type

Header

Material Flammability Rating

UL94 V-0

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

8.00μin 0.203μm

Fastening Type

Detent Lock

Contact Length Post

0.118 3.00mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

Insulation Height

0.260 6.60mm

Lead Pitch

2mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Housing Material

Polyamide

Montaj

Through Hole

Shrouding

Shrouded - 4 Wall

Dielectric Withstanding Voltage

650VAC V

JESD-609 Kodu

e4

Pitch Mating

0.079 2.00mm

Number Of Conductors

ONE

Rated Current Signal

2A

Additional Feature

100 PCS. PER BAG PACKAGING

Reliability

COMMERCIAL

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Shape

Square

Orientation

Straight

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-30°C~85°C

Uzunluk

6mm

Fabrika Tedarik Süresi

10 Weeks
