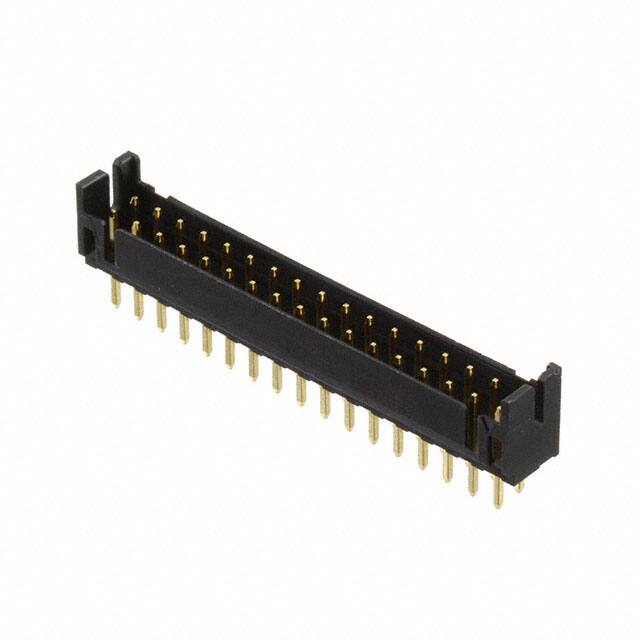

DF11-34DP-2DSA(01)

Teknik Özellikler

Contact Materials

Brass

Terminal

Solder

Overall Contact Length

0.299 7.60mm

Yayın Yılı

2010

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Gold

Montaj

Through Hole

Contact Gender

Male

Contact Type

Male Pin

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

34

Ambalaj

Bulk

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Insulation

Insulated

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Shrouding

Shrouded - 4 Wall

ECCN Kodu

EAR99

Stack Height Mating

7.55 7.8mm 8.9mm

HTS Kodu

8536.69.40.40

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Housing Material

Polyamide

Seri

DF11

Fastening Type

Detent Lock

Akım Değeri

2A

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Finish Thickness Mating

8.00μin 0.203μm

Nominal Gerilim

250V

Insulation Resistance

1GOhm

Connector Type

Header
