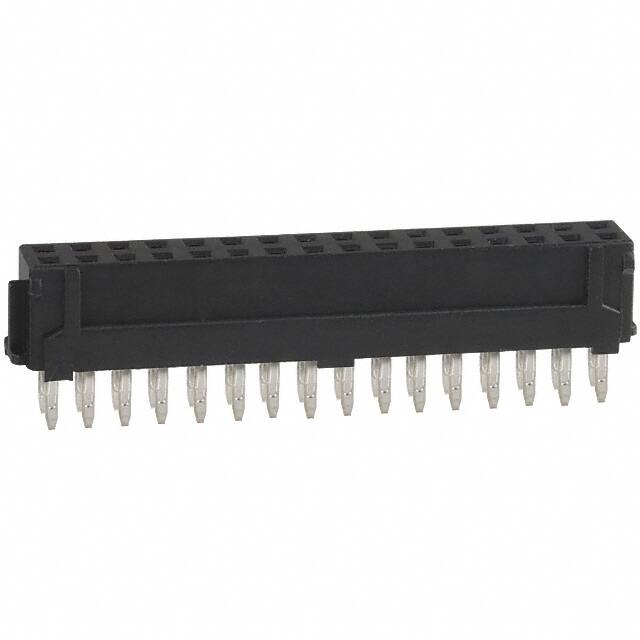

DF11-32DS-2DSA(06)

Teknik Özellikler

Insulation Height

0.244 6.20mm

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole

Connector Type

Receptacle

Insulation Resistance

1000000000Ohm

Din Conformance

NO

Housing Color

Black

Mating Contact Pitch

0.079 inch

Housing Material

Plastic

Body Length Or Diameter

1.339 inch

Mil Conformance

NO

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

32

Durability

50 Cycles

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Gold

Filter Feature

NO

Applications

General Purpose

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Withdrawl Forcemin

.3058 N

Current Rating Amps

2A

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Post

78.7μin 2.00μm

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Length Termination

0.118 inch

Fastening Type

Friction Lock

Dielectric Withstanding Voltage

650VAC V
