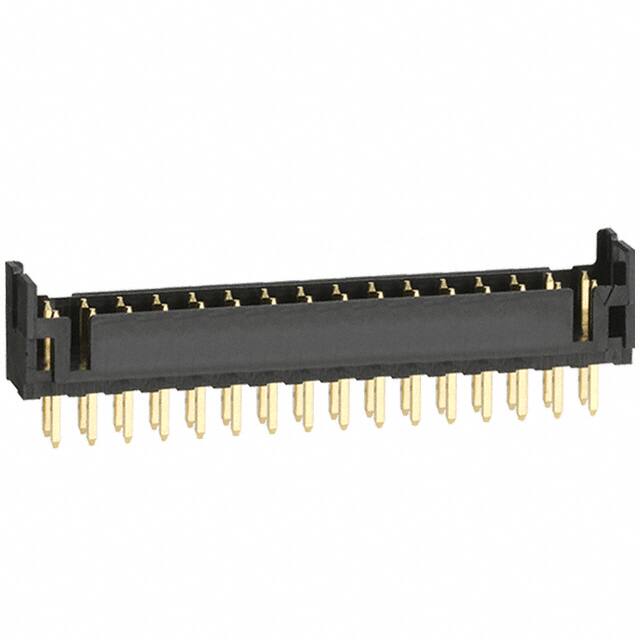

DF11-32DP-2DSA(01)

Teknik Özellikler

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Finish Thickness Mating

8.00μin 0.203μm

Nominal Gerilim

250V

Fastening Type

Detent Lock

Akım Değeri

2A

Additional Feature

100 PCS. PER BAG PACKAGING

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Number Of Pcb Rows

2

Seri

DF11

Max Current Rating

2A

Filter Feature

NO

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Withdrawl Forcemin

.3058 N

JESD-609 Kodu

e4

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Male Pin

Reference Standard

UL, CSA

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Contact Materials

Brass

Terminal

Solder

Polarization Key

GUIDE SLOT(S)

Pcb Contact Pattern

RECTANGULAR

Overall Contact Length

0.299 7.60mm

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Contact Resistance

30mOhm

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Connector Type

Header
