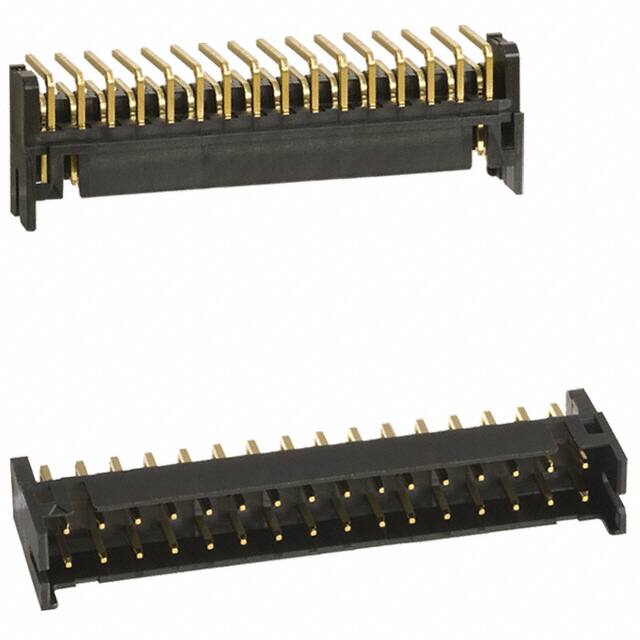

DF11-32DP-2DS(52)

Teknik Özellikler

Durability

50 Cycles

Pozisyon Sayısı

32

Ambalaj

Tube

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~85°C

Contact Finish Mating

Gold

Parça Durumu

Active

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

2A

Style

Board to Board or Cable

Gender

Male

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Depth

10mm

Connector Type

Header

Housing Color

Black

Kurşunsuz Kodu

yes

Din Conformance

NO

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Uzunluk

34mm

Insulation Height

0.197 5.00mm

Orientation

Right Angle

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Montaj Tipi

Through Hole, Right Angle

Contact Type

Male Pin

Reference Standard

UL, CSA

Pitch Mating

0.079 2.00mm

Yayın Yılı

2010

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Terminal

Solder

Contact Materials

Brass
