Adet bazlı fiyat
- 1+ adet$1.59
- 10+ adet$1.50
- 100+ adet$1.41
- 500+ adet$1.33
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

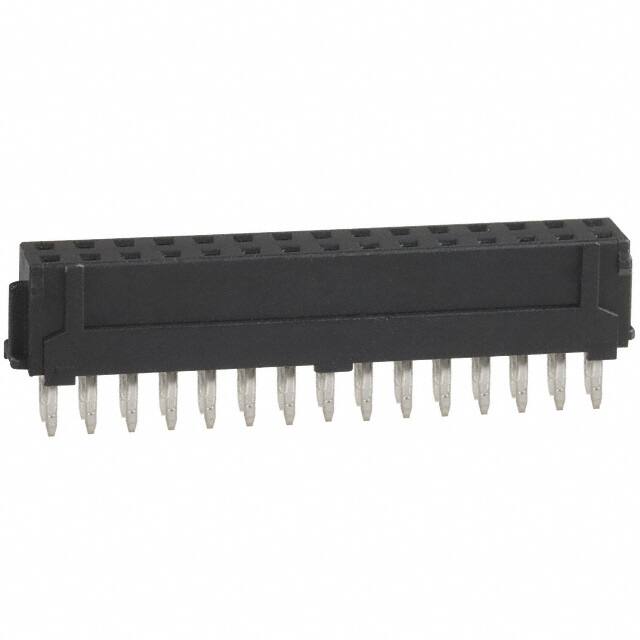

Teknik Özellikler
- Insulation Height
- 0.244 6.20mm
- Applications
- General Purpose
- Kurşunsuz
- Lead Free
- Orientation
- Straight
- Reach Svhc
- No SVHC
- Montaj Tipi
- Through Hole
- Connector Type
- Receptacle
- Insulation Resistance
- 1GOhm
- Number Of Positions Loaded
- All
- Sıra Sayısı
- 2
- Nominal Gerilim
- 250V
- Contact Finish Thickness Post
- 78.7μin 2.00μm
- Housing Color
- Black
- Contact Finish Thickness Mating
- 78.7μin 2.00μm
- Akım Değeri
- 2A
- Fastening Type
- Friction Lock
- Housing Material
- Polyamide
- Seri
- DF11
- HTS Kodu
- 8536.69.40.40
- Contact Shape
- Square
- Voltage Rated Ac
- 30V
- Row Spacing Mating
- 0.079 (2.00mm)
- Stack Height Mating
- 7.8mm 8.45mm
- ECCN Kodu
- EAR99
- Contact Resistance
- 30mOhm
- REACH Uyumluluk Kodu
- unknown
- Insulation Materials
- Polyamide (PA), Nylon
- Contact Length Post
- 0.118 3.00mm
- Style
- Board to Board or Cable
- Lead Pitch
- 2mm
- Material Flammability Rating
- UL94 V-0
- Flammability Rating
- UL94 V-0
- RoHS Durumu
- RoHS Compliant
- Ambalaj
- Tray
- Pozisyon Sayısı
- 30
- Montaj
- Through Hole
- Contact Gender
- Female
- Fabrika Tedarik Süresi
- 10 Weeks
- Contact Type
- Female Socket
- Yayın Yılı
- 2009
