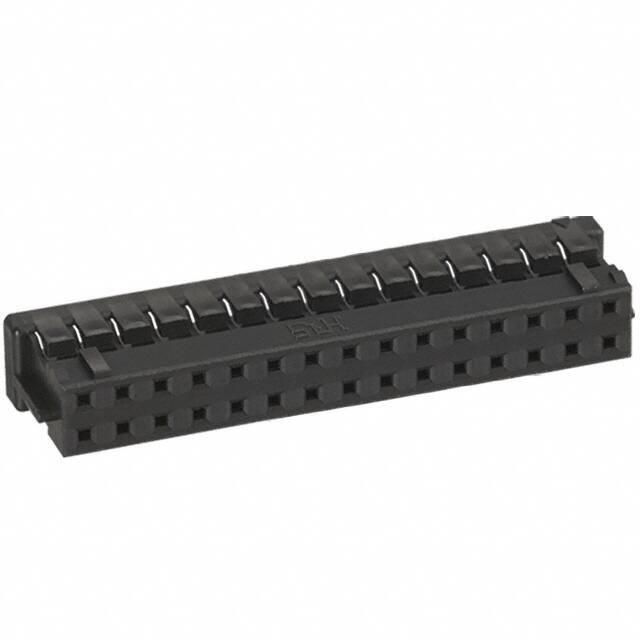

DF11-30DS-2C

Teknik Özellikler

Renk

Black

Option

GENERAL PURPOSE

Insulation Resistance

1GOhm

Connector Type

Receptacle

Kurşunsuz Kodu

yes

Sıra Sayısı

2

Din Conformance

NO

Row Spacing

0.079 (2.00mm)

Seri

DF11

Housing Material

Plastic

Additional Feature

POLARIZED

Pitch

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Total Number Of Contacts

30

Operating Temperature Max

85°C

Filter Feature

NO

Mounting Option1

LOCKING MECH

Contact Plating

Tin

Orientation

Straight

Contact Design

PREASSEM CONN

Ul Flammability Code

94V-0

Iec Conformance

NO

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Montaj Tipi

Free Hanging (In-Line)

Pozisyon Sayısı

30

Ambalaj

Bulk

Mixed Contacts

NO

Contact Type

Female Socket

Fabrika Tedarik Süresi

10 Weeks

Contact Termination

Crimp

Reference Standard

UL, CSA

Note

Contacts Not Included

Contact Finish Mating

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Yayın Yılı

2004

Polarization Key

POLARIZED RIB(S)

Contact Materials

NOT SPECIFIED
