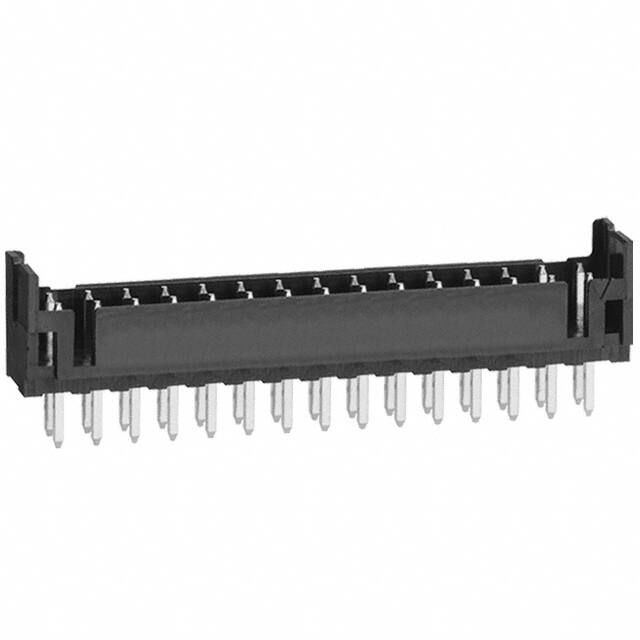

DF11-30DP-2DSA(08)

Teknik Özellikler

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Connector Type

Header

Depth

5mm

Kurşunsuz Kodu

yes

Din Conformance

NO

Radyasyon Dayanımı

No

Mounting Option1

LOCKING MECH

Insulation Color

Black

Orientation

Straight

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole

Uzunluk

32mm

Insulation Height

0.260 6.60mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Parça Durumu

Active

Ambalaj

Bulk

Pozisyon Sayısı

30

Mixed Contacts

NO

Fabrika Tedarik Süresi

12 Weeks

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

2A

Style

Board to Board or Cable

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Fastening Type

Detent Lock

Akım Değeri

2A

Seri

DF11

Number Of Pcb Rows

2

Max Current Rating

2A

Additional Feature

ROW INSERTION PRODUCT

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

250V
