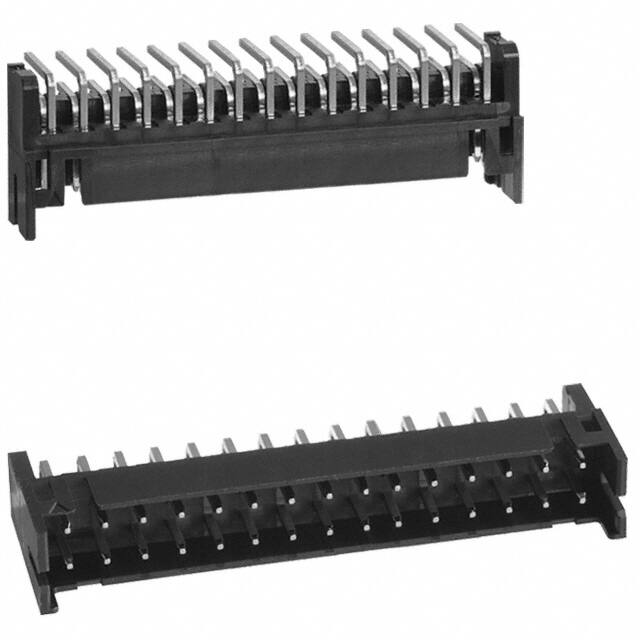

DF11-30DP-2DS(24)

Teknik Özellikler

Contact Gender

Male

Reference Standard

UL, CSA

Contact Type

Male Pin

Yayın Yılı

2009

Pitch Mating

0.079 2.00mm

Contact Materials

Brass

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Contact Resistance

30mOhm

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Flammability Rating

UL94 V-0

Lead Pitch

2mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Number Of Positions Loaded

All

Nominal Gerilim

250V

Contact Finish Thickness Mating

39.4μin 1.00μm

Akım Değeri

2A

Fastening Type

Detent Lock

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Additional Feature

NONE

Max Current Rating

2A

Seri

DF11

Number Of Pcb Rows

2

Filter Feature

NO

Yükseklik

5mm

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

JESD-609 Kodu

e3

Mixed Contacts

NO

Pozisyon Sayısı

30

Ambalaj

Tube

Montaj

Through Hole
