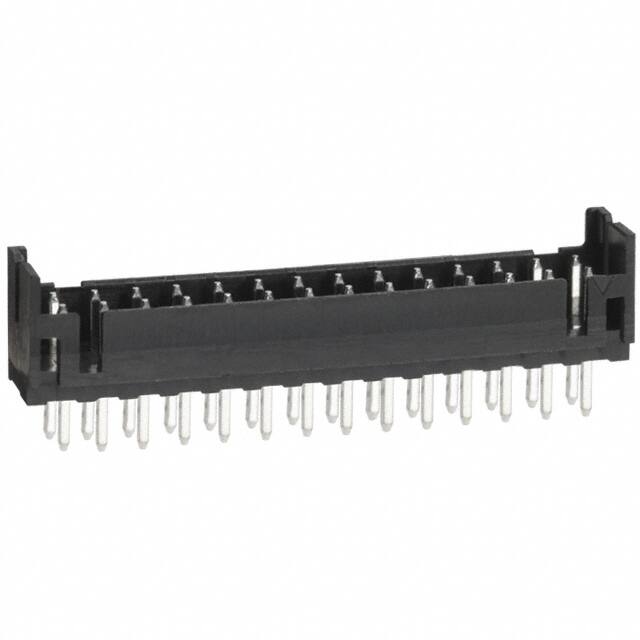

DF11-28DP-2DSA(08)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Resistance

30mOhm

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Terminal

Solder

Contact Materials

Brass

Overall Contact Length

0.299 7.60mm

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Reference Standard

UL, CSA

Contact Type

Male Pin

JESD-609 Kodu

e3

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Withdrawl Forcemin

.3058 N

Filter Feature

NO

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Additional Feature

ROW INSERTION PRODUCT

Max Current Rating

2A

Seri

DF11

Number Of Pcb Rows

2

Akım Değeri

2A

Fastening Type

Detent Lock

Sıra Sayısı

2

Number Of Positions Loaded

All

Nominal Gerilim

250V

Contact Finish Thickness Mating

39.4μin 1.00μm

Style

Board to Board or Cable

Rated Current Signal

2A

Insulation Materials

Polyamide (PA), Nylon

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO
