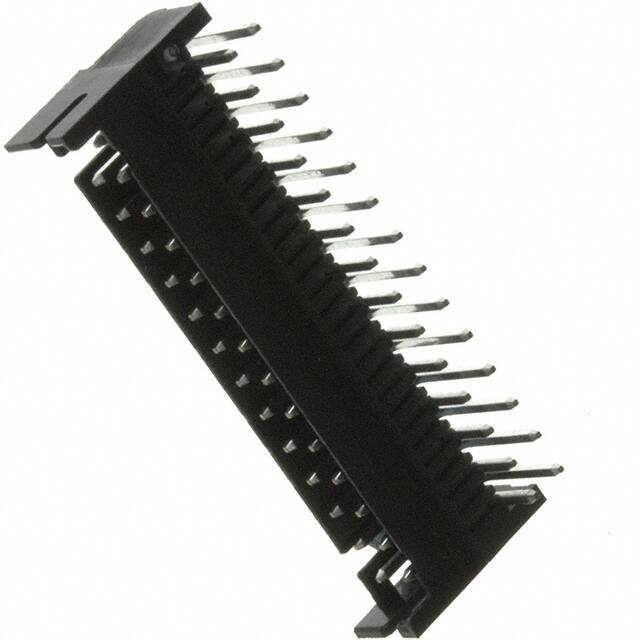

DF11-28DP-2DS(24)

Teknik Özellikler

Additional Feature

NONE

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Seri

DF11

Number Of Pcb Rows

2

Fastening Type

Detent Lock

Akım Değeri

2A

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

250V

JESD-609 Kodu

e3

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Withdrawl Forcemin

.3058 N

Yükseklik

5mm

Filter Feature

NO

Terminal

Solder

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Yayın Yılı

2010

Pitch Mating

0.079 2.00mm

Contact Type

Male Pin

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Contact Resistance

30mOhm

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black
