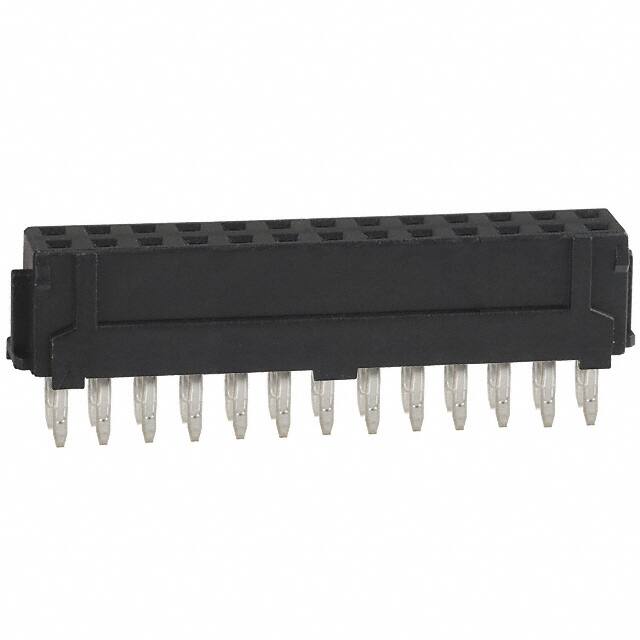

DF11-26DS-2DSA(05)

Teknik Özellikler

Terminal

Press-Fit, Solder

Contact Materials

Brass

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.079 2.00mm

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Parça Durumu

Active

Yayın Yılı

2008

Fabrika Tedarik Süresi

10 Weeks

Contact Type

Female Socket

Ambalaj

Bulk

Pozisyon Sayısı

26

RoHS Durumu

RoHS Compliant

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Insulation Materials

Polyamide (PA), Nylon

Contact Length Post

0.118 3.00mm

ECCN Kodu

EAR99

Stack Height Mating

7.8mm 8.45mm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

HTS Kodu

8536.69.40.40

Seri

DF11

Fastening Type

Friction Lock

Nominal Gerilim

250V

Contact Finish Thickness Post

78.7μin 2.00μm

Contact Finish Thickness Mating

78.7μin 2.00μm

Number Of Positions Loaded

All

Sıra Sayısı

2

Connector Type

Receptacle

Montaj Tipi

Through Hole

Current Rating Amps

2A

Insulation Color

Black

Insulation Height

0.244 6.20mm

Applications

General Purpose
