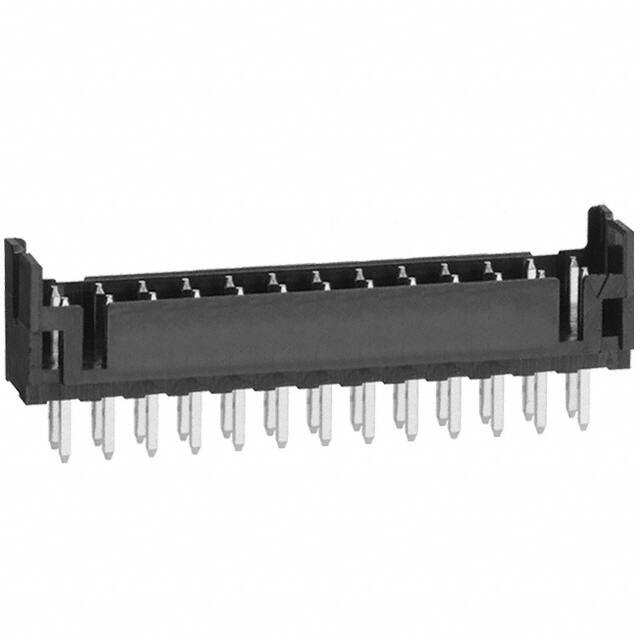

DF11-26DP-2DSA(08)

Teknik Özellikler

Option

GENERAL PURPOSE

Insulation Resistance

1000000000Ohm

Connector Type

Header

Din Conformance

NO

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Uzunluk

28mm

Insulation Height

0.260 6.60mm

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Mounting Option1

LOCKING MECH

Orientation

Straight

Insulation Color

Black

Montaj Tipi

Through Hole

Pozisyon Sayısı

26

Ambalaj

Bulk

Mixed Contacts

NO

Durability

30 Cycles

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Rated Current Signal

2A

Style

Board to Board or Cable

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

250V

Fastening Type

Detent Lock

Akım Değeri

2A

Additional Feature

ROW INSERTION PRODUCT

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Number Of Pcb Rows

2
