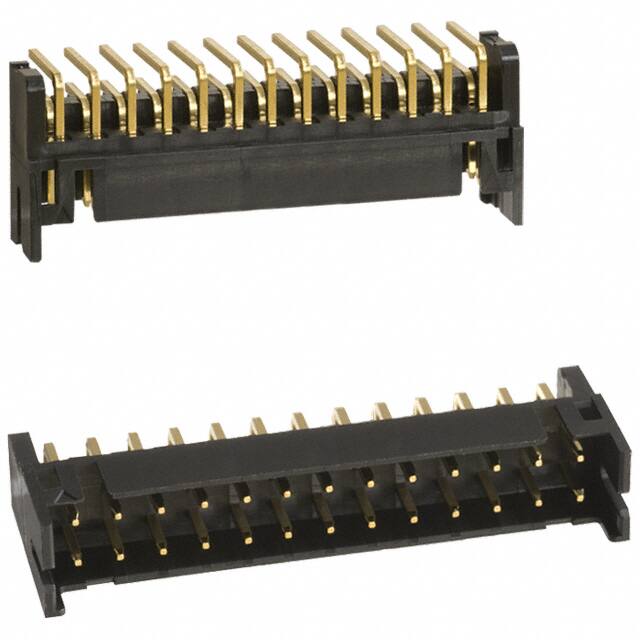

DF11-26DP-2DS(52)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Contact Type

Male Pin

Montaj

Through Hole

Ambalaj

Tube

Pozisyon Sayısı

26

Number Of Contacts

26

Terminal

Solder

Contact Materials

Brass

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-40°C~85°C

Pitch Mating

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Yayın Yılı

2010

Shrouding

Shrouded - 4 Wall

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

RoHS Durumu

RoHS Compliant

Gender

Male

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Style

Board to Board or Cable

Contact Length Post

0.118 3.00mm

Insulation Materials

Polyamide (PA), Nylon

Contact Lengthmating

0.118 3.00mm

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Housing Color

Black

Number Of Positions Loaded

All

Sıra Sayısı

2

Renk

Black

Connector Type

Header

Seri

DF11

Pitch

2mm

Housing Material

Polyamide

Akım Değeri

2A

Fastening Type

Detent Lock

Insulation Height

0.197 5.00mm

Uzunluk

28mm

Yükseklik

5mm
