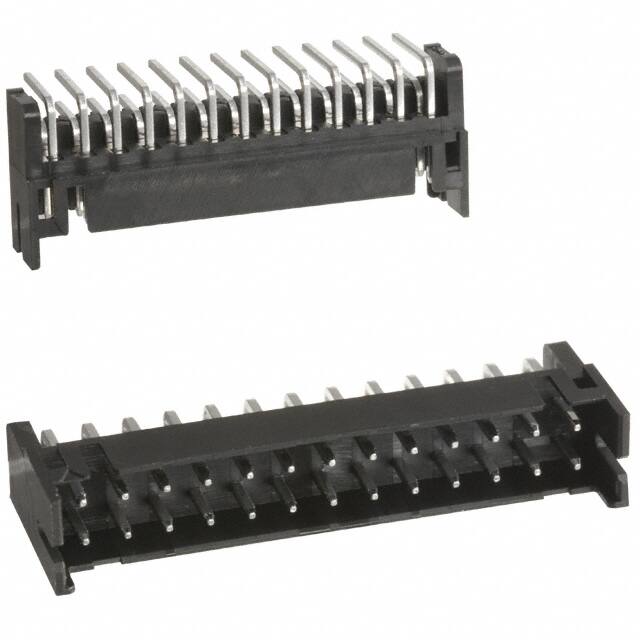

DF11-26DP-2DS(24)

Teknik Özellikler

JESD-609 Kodu

e3

Withdrawl Forcemin

.3058 N

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Yükseklik

5mm

Filter Feature

NO

Number Of Pcb Rows

2

Seri

DF11

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Additional Feature

NONE

Akım Değeri

2A

Fastening Type

Detent Lock

Nominal Gerilim

250V

Contact Finish Thickness Mating

39.4μin 1.00μm

Sıra Sayısı

2

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Lead Pitch

2mm

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

ECCN Kodu

EAR99

Contact Resistance

30mOhm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

HTS Kodu

8536.69.40.40

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Terminal

Solder

Contact Materials

Brass

Pitch Mating

0.079 2.00mm

Yayın Yılı

2008

Reference Standard

UL, CSA

Contact Type

Male Pin

Montaj Tipi

Through Hole, Right Angle

Reach Svhc

No SVHC

Orientation

Right Angle
