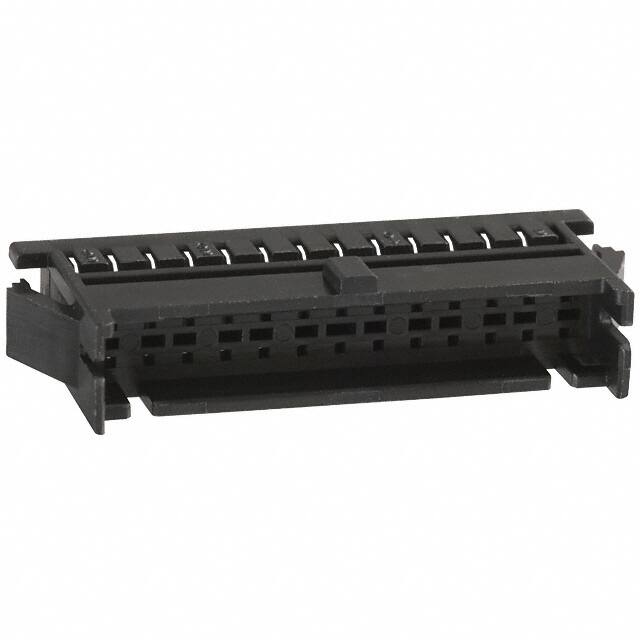

DF11-26DEP-2C

Teknik Özellikler

Akım Değeri

2A

Additional Feature

PANEL MOUNTABLE

Dielectric Withstanding Voltage

650VAC V

Seri

DF11

Max Current Rating

2A

Renk

Black

Row Spacing

0.079 (2.00mm)

Sıra Sayısı

2

Min. Çalışma Sıcaklığı

-30°C

Nominal Gerilim

250V

Kurşunsuz

Lead Free

Iec Conformance

NO

Withdrawl Forcemin

.3058 N

Filter Feature

NO

Total Number Of Contacts

26

Yükseklik

6.9mm

Yayın Yılı

2004

Max Voltage Rating Ac

250V

Contact Materials

NOT SPECIFIED

Polarization Key

POLARIZED HOUSING

Contact Gender

Male

Note

Contacts Not Included

Contact Type

Male Pin

Reference Standard

UL, CSA

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Wire Gauge Max

30 AWG

Contact Resistance

30mOhm

Housing Material

Polyamide

Pitch

0.079 2.00mm

Insulation Resistance

1000000000Ohm

Option

WITH CABLE ASSEMBLY

Connector Type

Plug

Depth

13mm

Din Conformance

NO

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Orientation

Straight

Reach Svhc

No SVHC

Montaj Tipi

Panel Mount, Snap-In
