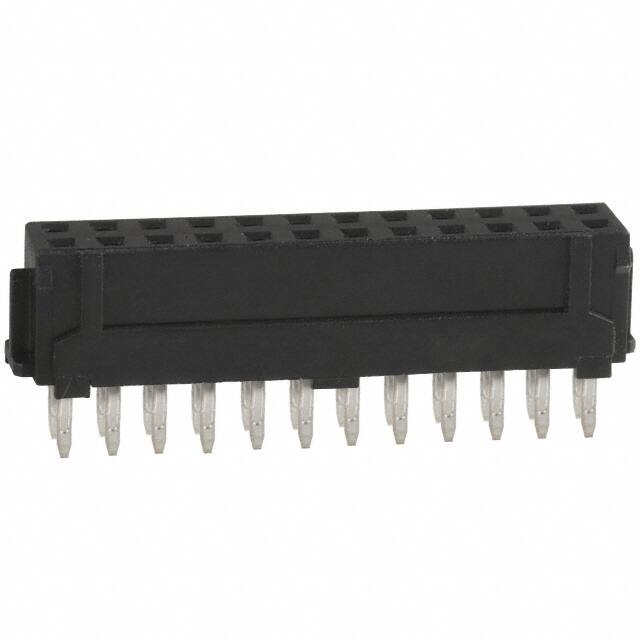

DF11-24DS-2DSA(05)

Teknik Özellikler

Uzunluk

26mm

Insulation Height

0.244 6.20mm

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Orientation

Straight

Radyasyon Dayanımı

No

Housing Color

Black

Insulation Resistance

1GOhm

Depth

5mm

Connector Type

Receptacle

Housing Material

Polyamide

Voltage Rated Ac

30V

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tray

Pozisyon Sayısı

24

Parça Durumu

Active

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

General Purpose

Kurşunsuz

Lead Free

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Mating

78.7μin 2.00μm

Nominal Gerilim

250V

Contact Finish Thickness Post

78.7μin 2.00μm

Seri

DF11

Max Current Rating

2A

Fastening Type

Friction Lock

Akım Değeri

2A

Contact Resistance

30mOhm

Stack Height Mating

7.8mm 8.45mm

ECCN Kodu

EAR99

HTS Kodu

8536.69.40.40

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Material Flammability Rating

UL94 V-0
