Adet bazlı fiyat
- 1+ adet$0.10
- 10+ adet$0.09
- 100+ adet$0.09
- 500+ adet$0.08
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

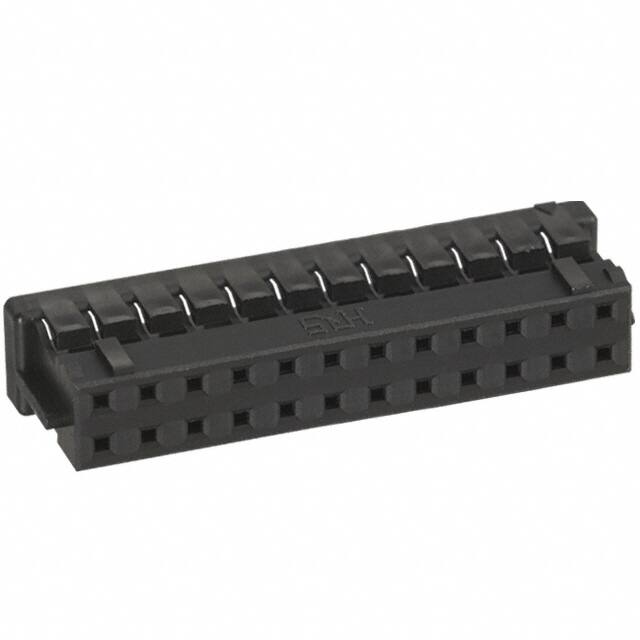

Teknik Özellikler
- Reach Svhc
- No SVHC
- Montaj Tipi
- Free Hanging (In-Line)
- Iec Conformance
- NO
- Ul Flammability Code
- 94V-0
- Kurşunsuz
- Lead Free
- Number Of Conductors
- ONE
- Reliability
- COMMERCIAL
- Orientation
- Straight
- Mounting Option1
- LOCKING
- Contact Plating
- Tin
- Filter Feature
- NO
- Total Number Of Contacts
- 24
- Body Breadth
- 0.197 inch
- Pitch
- 0.079 2.00mm
- Housing Material
- Plastic
- Seri
- DF11
- Row Spacing
- 0.079 (2.00mm)
- Sıra Sayısı
- 2
- Din Conformance
- NO
- Connector Type
- Receptacle
- Option
- GENERAL PURPOSE
- Insulation Resistance
- 1GOhm
- Renk
- Black
- Lead Pitch
- 2mm
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- unknown
- Mil Conformance
- NO
- ECCN Kodu
- EAR99
- Contact Resistance
- 30mOhm
- HTS Kodu
- 8536.69.40.40
- Voltage Rated Ac
- 30V
- Polarization Key
- POLARIZED HOUSING
- Parça Durumu
- Active
- Yayın Yılı
- 2008
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Note
- Contacts Not Included
- Fabrika Tedarik Süresi
- 12 Weeks
- Contact Termination
- Crimp
- Reference Standard
- UL
- Contact Type
- Female Socket
