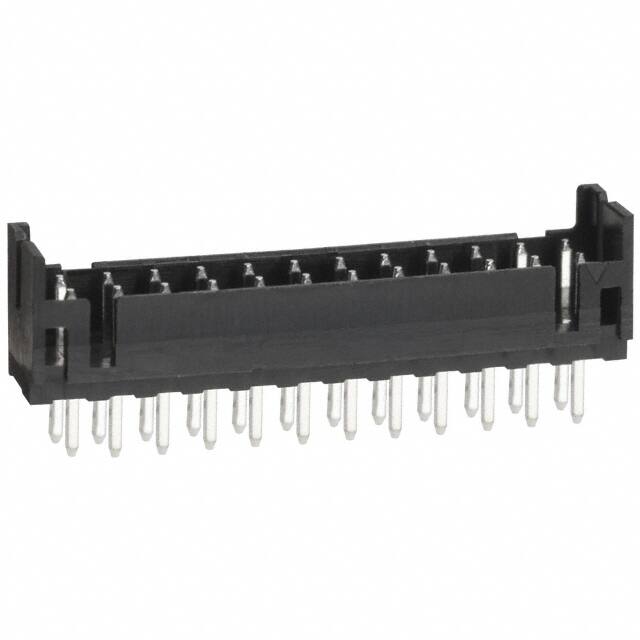

DF11-24DP-2DSA(08)

Teknik Özellikler

Fabrika Tedarik Süresi

10 Weeks

Durability

30 Cycles

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

24

Contact Finish Mating

Tin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Style

Board to Board or Cable

Rated Current Signal

2A

Insulation Materials

Polyamide (PA), Nylon

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Din Conformance

NO

Connector Type

Header

Depth

5mm

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Insulation Height

0.260 6.60mm

Uzunluk

26mm

Montaj Tipi

Through Hole

Insulation Color

Black

Orientation

Straight

Mounting Option1

LOCKING MECH

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Reference Standard

UL, CSA

Contact Type

Male Pin

Overall Contact Length

0.299 7.60mm

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Contact Materials

Brass

Terminal

Solder

Pitch Mating

0.079 2.00mm

Yayın Yılı

2010
