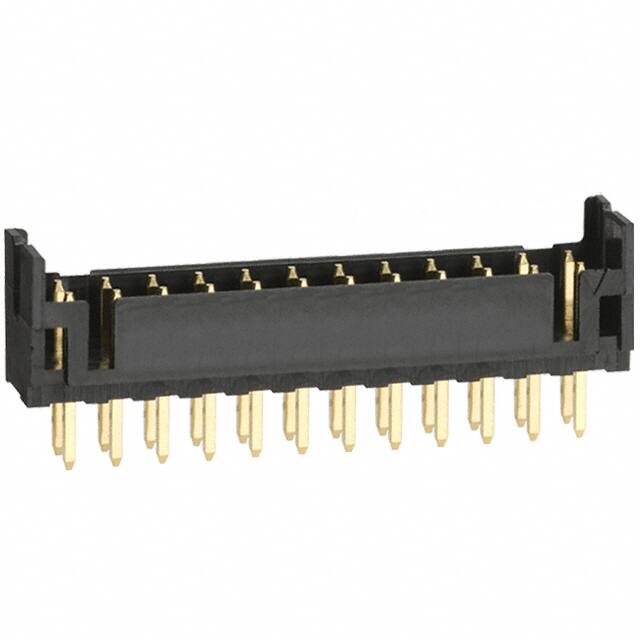

DF11-24DP-2DSA(01)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board or Cable

Gender

Male

Rated Current Signal

2A

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Parça Durumu

Active

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Pozisyon Sayısı

24

Ambalaj

Bulk

Durability

50 Cycles

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole

Insulation Height

0.260 6.60mm

Uzunluk

26mm

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Connector Type

Header

Option

GENERAL PURPOSE

Insulation Resistance

1000000000Ohm

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Lead Pitch

2mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Resistance

30mOhm

Yayın Yılı

2010
