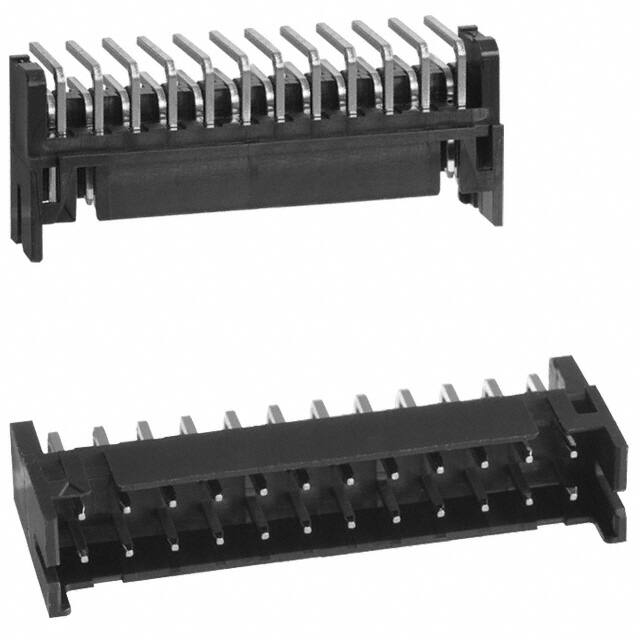

DF11-24DP-2DS(24)

Teknik Özellikler

Rated Current Signal

2A

Gender

Male

Style

Board to Board or Cable

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Voltage Rated Ac

30V

Parça Durumu

Active

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Body Depth

0.394 inch

Fabrika Tedarik Süresi

10 Weeks

Ambalaj

Tube

Pozisyon Sayısı

24

Mixed Contacts

NO

Durability

50 Cycles

Reach Svhc

No SVHC

Montaj Tipi

Through Hole, Right Angle

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Orientation

Right Angle

Insulation Height

0.197 5.00mm

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black

Insulation Resistance

1GOhm

Option

GENERAL PURPOSE

Connector Type

Header

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Contact Resistance

30mOhm
