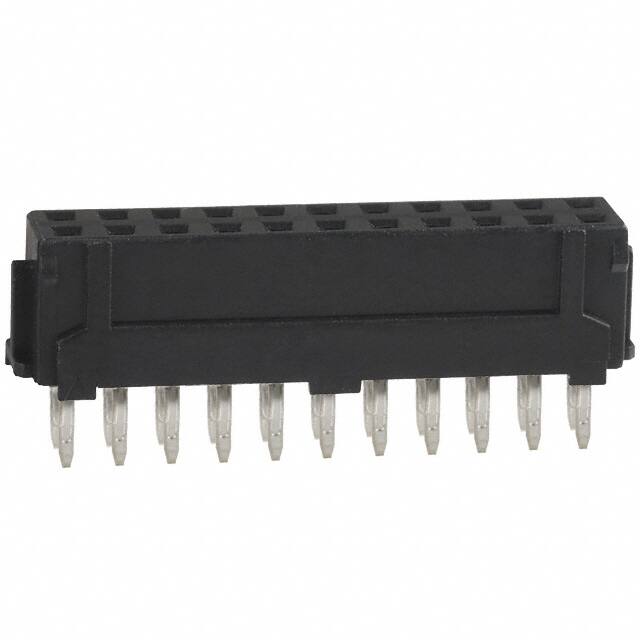

DF11-22DS-2DSA(05)

Teknik Özellikler

Kurşunsuz

Lead Free

Orientation

Straight

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Applications

General Purpose

Insulation Height

0.244 6.20mm

Akım Değeri

2A

Fastening Type

Friction Lock

Housing Material

Polyamide

Seri

DF11

Connector Type

Receptacle

Insulation Resistance

1GOhm

Sıra Sayısı

2

Number Of Positions Loaded

All

Nominal Gerilim

250V

Contact Finish Thickness Post

78.7μin 2.00μm

Housing Color

Black

Contact Finish Thickness Mating

78.7μin 2.00μm

Contact Length Post

0.118 3.00mm

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

Style

Board to Board or Cable

RoHS Durumu

RoHS Compliant

Contact Shape

Square

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.079 (2.00mm)

Voltage Rated Ac

30V

ECCN Kodu

EAR99

Stack Height Mating

7.8mm 8.45mm

Contact Resistance

30mOhm

Parça Durumu

Active

Yayın Yılı

2008

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-30°C~85°C

Pitch Mating

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Press-Fit, Solder
