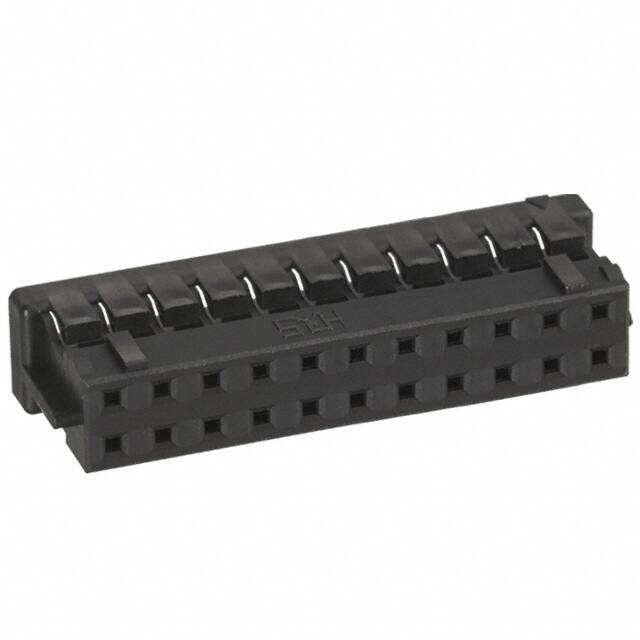

DF11-22DS-2C

Teknik Özellikler

Body Length Or Diameter

0.945 inch

Pitch

0.079 2.00mm

Housing Material

Plastic

Din Conformance

NO

Connector Type

Receptacle

Insulation Resistance

1GOhm

Option

GENERAL PURPOSE

Montaj Tipi

Free Hanging (In-Line)

Orientation

Straight

Mounting Option1

LOCKING MECH

Contact Plating

Tin

Ul Flammability Code

94V-0

Operating Temperature Min

-30°C

Reliability

COMMERCIAL

Wire Size Min

30 AWG

Contact Finish Mating

SN

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Termination

Crimp

Fabrika Tedarik Süresi

10 Weeks

Bodyshell Style

PLUG

Durability

30 Cycles

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

22

Rated Current Signal

2A

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Voltage Rated Ac

30V

Seri

DF11

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Row Spacing

0.079 (2.00mm)

Sıra Sayısı

2

Renk

Black

JESD-609 Kodu

e3

Withdrawl Forcemin

.3058 N

Kurşunsuz

Lead Free

Contact Design

PREASSEM CONN

Iec Conformance

NO
