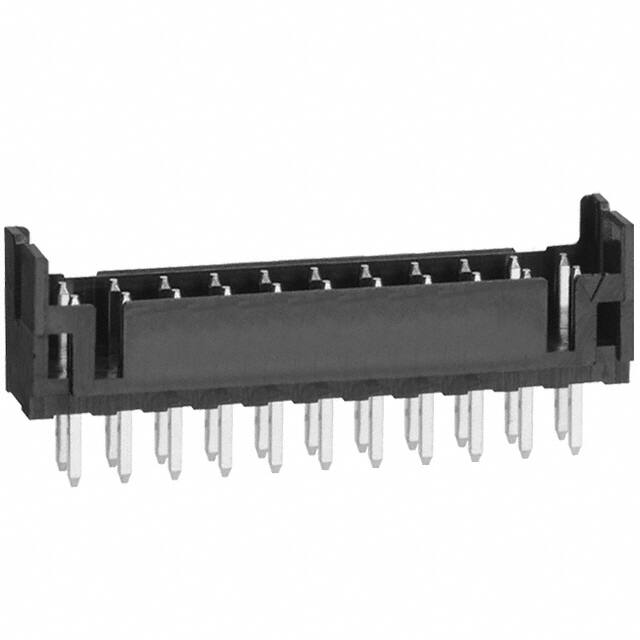

DF11-22DP-2DSA(08)

Teknik Özellikler

Style

Board to Board or Cable

Rated Current Signal

2A

Insulation Materials

Polyamide (PA), Nylon

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Çalışma Sıcaklığı

-30°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

Tin

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Durability

30 Cycles

Mixed Contacts

NO

Ambalaj

Bulk

Pozisyon Sayısı

22

Montaj Tipi

Through Hole

Orientation

Straight

Insulation Color

Black

Mounting Option1

LOCKING MECH

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Insulation Height

0.260 6.60mm

Uzunluk

24mm

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Kurşunsuz Kodu

yes

Radyasyon Dayanımı

No

Din Conformance

NO

Connector Type

Header

Depth

5mm

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Resistance

30mOhm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

Overall Contact Length

0.299 7.60mm
