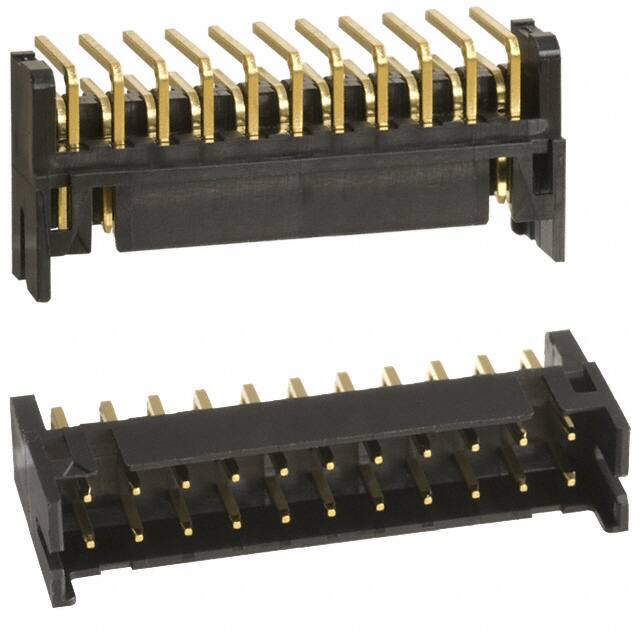

DF11-22DP-2DS(52)

Teknik Özellikler

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~85°C

Contact Finish Mating

Gold

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

Pozisyon Sayısı

22

Ambalaj

Tube

Durability

50 Cycles

Gender

Male

Style

Board to Board or Cable

Rated Current Signal

2A

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black

Depth

10mm

Connector Type

Header

Option

GENERAL PURPOSE

Insulation Resistance

1000000000Ohm

Montaj Tipi

Through Hole, Right Angle

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Orientation

Right Angle

Insulation Height

0.197 5.00mm

Uzunluk

24mm

Contact Materials

Brass

Terminal

Solder

Polarization Key

GUIDE SLOT(S)

Pcb Contact Pattern

RECTANGULAR

Yayın Yılı

2004

Pitch Mating

0.079 2.00mm

Reference Standard

UL, CSA

Contact Type

Male Pin
