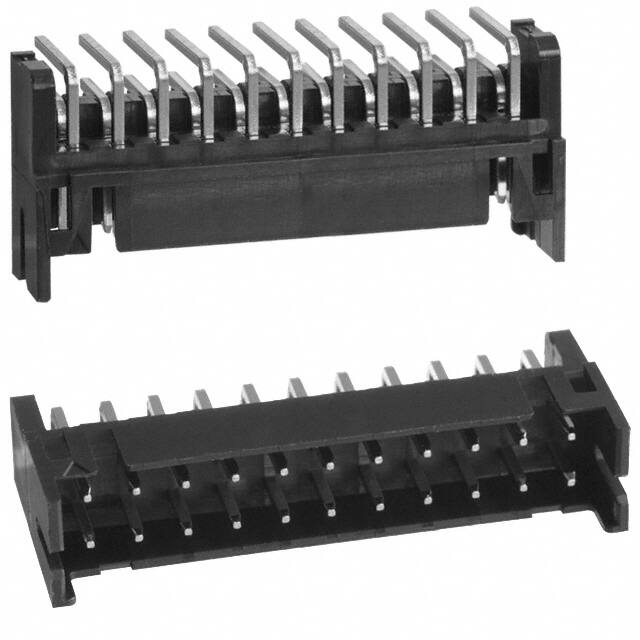

DF11-22DP-2DS(24)

Teknik Özellikler

Number Of Positions Loaded

All

Sıra Sayısı

2

Contact Finish Thickness Mating

39.4μin 1.00μm

Nominal Gerilim

250V

Fastening Type

Detent Lock

Akım Değeri

2A

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Seri

DF11

Number Of Pcb Rows

2

Max Current Rating

2A

Filter Feature

NO

Yükseklik

5mm

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Withdrawl Forcemin

.3058 N

JESD-609 Kodu

e3

Contact Type

Male Pin

Reference Standard

UL, CSA

Yayın Yılı

2008

Pitch Mating

0.079 2.00mm

Contact Materials

Brass

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Polarization Key

GUIDE SLOT(S)

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Contact Resistance

30mOhm

Contact Lengthmating

0.118 3.00mm

Contact Length Post

0.118 3.00mm

Material Flammability Rating

UL94 V-0

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Option

GENERAL PURPOSE

Connector Type

Header

Depth

10mm

Din Conformance

NO

Radyasyon Dayanımı

No
