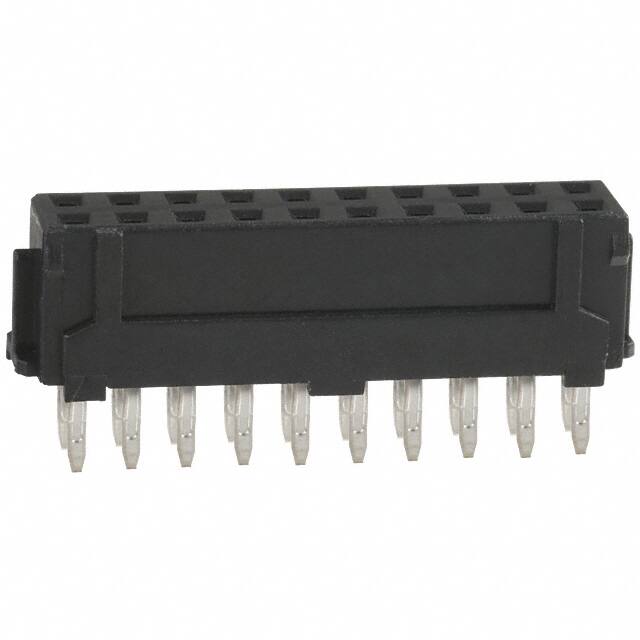

DF11-20DS-2DSA(05)

Teknik Özellikler

Lead Pitch

2mm

Flammability Rating

UL94 V-0

Material Flammability Rating

UL94 V-0

Genişlik

5mm

RoHS Durumu

RoHS Compliant

Contact Length Post

0.118 3.00mm

ECCN Kodu

EAR99

Stack Height Mating

7.8mm 8.45mm

Contact Resistance

30mOhm

Contact Shape

Square

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.079 (2.00mm)

Terminal

Press-Fit, Solder

Contact Materials

Brass

Polarization Key

HOUSING SIDE

Pcb Contact Pattern

RECTANGULAR

Yayın Yılı

2001

Pitch Mating

0.079 2.00mm

Contact Gender

Female

Reference Standard

UL, CSA

Contact Type

Female Socket

JESD-609 Kodu

e4

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Withdrawl Forcemin

.3058 N

Applications

General Purpose

Yükseklik

6.2mm

Filter Feature

NO

Body Breadth

0.197 inch

Dielectric Withstanding Voltage

650VAC V

Max Current Rating

2A

Number Of Pcb Rows

2

Seri

DF11

Akım Değeri

2A

Fastening Type

Friction Lock

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Thickness Post

78.7μin 2.00μm

Nominal Gerilim

250V
