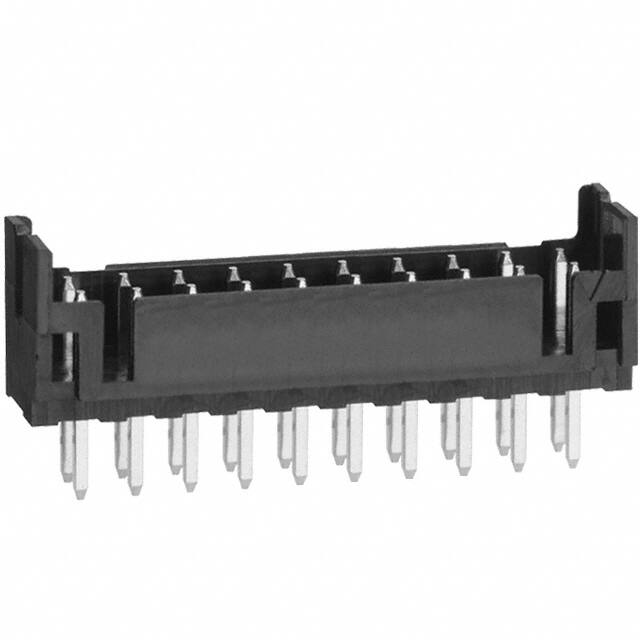

DF11-20DP-2DSA(24)

Teknik Özellikler

JESD-609 Kodu

e3

Withdrawl Forcemin

.3058 N

Kurşunsuz

Lead Free

Number Of Conductors

ONE

Iec Conformance

NO

Filter Feature

NO

Max Current Rating

2A

Seri

DF11

Number Of Pcb Rows

2

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Akım Değeri

2A

Fastening Type

Detent Lock

Nominal Gerilim

250V

Contact Finish Thickness Mating

39.4μin 1.00μm

Sıra Sayısı

2

Number Of Positions Loaded

All

RoHS Durumu

RoHS Compliant

Flammability Rating

UL94 V-0

Lead Pitch

2mm

Material Flammability Rating

UL94 V-0

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

Stack Height Mating

7.55 7.8mm 8.9mm

Contact Resistance

30mOhm

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

Overall Contact Length

0.299 7.60mm

Polarization Key

GUIDE SLOT(S)

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Brass

Terminal

Solder

Pitch Mating

0.079 2.00mm

Yayın Yılı

2001

Reference Standard

UL, CSA

Contact Type

Male Pin

Contact Gender

Male

Montaj Tipi

Through Hole

Reach Svhc

No SVHC

Orientation

Straight
