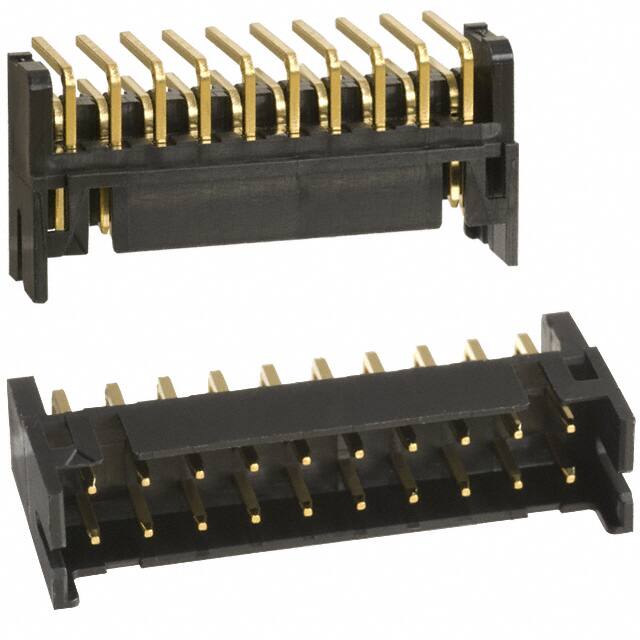

DF11-20DP-2DS(52)

Teknik Özellikler

Din Conformance

NO

Kurşunsuz Kodu

yes

Housing Color

Black

Depth

10mm

Connector Type

Header

Option

GENERAL PURPOSE

Insulation Resistance

1000000000Ohm

Housing Material

Polyamide

Mating Contact Pitch

0.079 inch

Insulation Height

0.197 5.00mm

Uzunluk

22mm

Montaj Tipi

Through Hole, Right Angle

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Orientation

Right Angle

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Mixed Contacts

NO

Pozisyon Sayısı

20

Ambalaj

Tube

Durability

50 Cycles

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~85°C

Contact Finish Mating

Gold

Shrouding

Shrouded - 4 Wall

Mil Conformance

NO

Style

Board to Board or Cable

Gender

Male

Rated Current Signal

2A

REACH Uyumluluk Kodu

unknown

Insulation Materials

Polyamide (PA), Nylon

Number Of Positions Loaded

All

Sıra Sayısı

2

Nominal Gerilim

250V

Contact Finish Thickness Mating

8.00μin 0.203μm

Dielectric Withstanding Voltage

650VAC V

Body Breadth

0.197 inch

Max Current Rating

2A

Number Of Pcb Rows

2
