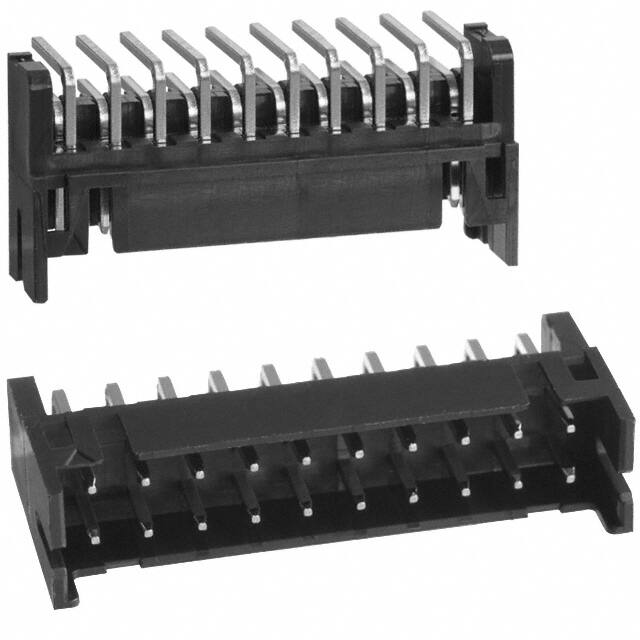

DF11-20DP-2DS(24)

Teknik Özellikler

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Rated Current Signal

2A

Gender

Male

Style

Board to Board or Cable

Voltage Rated Ac

30V

Mil Conformance

NO

Shrouding

Shrouded - 4 Wall

Contact Finish Mating

Tin

Çalışma Sıcaklığı

-40°C~85°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Durability

30 Cycles

Pozisyon Sayısı

20

Ambalaj

Tube

Mixed Contacts

NO

Fabrika Tedarik Süresi

10 Weeks

Montaj

Through Hole

Orientation

Right Angle

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Montaj Tipi

Through Hole, Right Angle

Reach Svhc

No SVHC

Uzunluk

22mm

Insulation Height

0.197 5.00mm

Mating Contact Pitch

0.079 inch

Housing Material

Polyamide

Insulation Resistance

1GOhm

Option

GENERAL PURPOSE

Depth

10mm

Connector Type

Header

Kurşunsuz Kodu

yes

Housing Color

Black

Din Conformance

NO

Contact Length Post

0.118 3.00mm

Contact Lengthmating

0.118 3.00mm

RoHS Durumu

RoHS Compliant

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Lead Pitch

2mm
