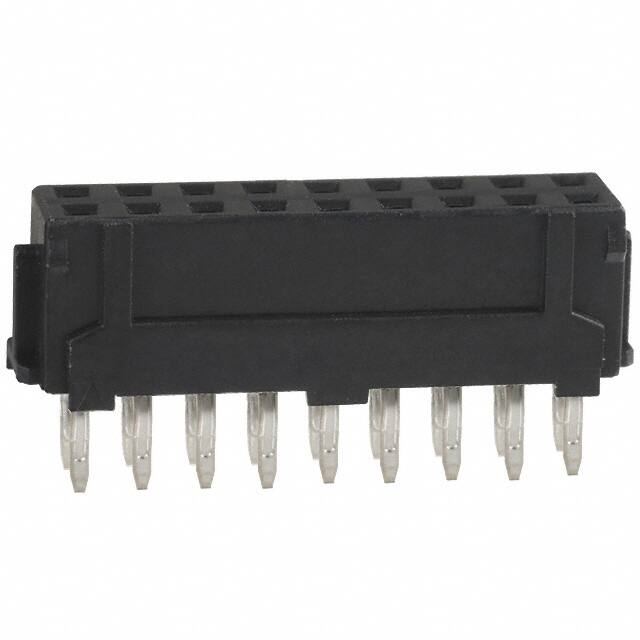

DF11-18DS-2DSA(05)

Teknik Özellikler

Contact Shape

Square

HTS Kodu

8536.69.40.40

Row Spacing Mating

0.079 (2.00mm)

Voltage Rated Ac

30V

Contact Resistance

30mOhm

ECCN Kodu

EAR99

Stack Height Mating

7.8mm 8.45mm

Contact Length Post

0.118 3.00mm

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Style

Board to Board or Cable

Lead Pitch

2mm

Material Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Ambalaj

Bulk

Pozisyon Sayısı

18

Contact Gender

Female

Montaj

Through Hole

Contact Type

Female Socket

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Yayın Yılı

2009

Pitch Mating

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Contact Materials

Brass

Terminal

Press-Fit, Solder

Insulation Height

0.244 6.20mm

Applications

General Purpose

Kurşunsuz

Lead Free

Orientation

Straight

Reach Svhc

No SVHC

Montaj Tipi

Through Hole

Insulation Resistance

1GOhm

Connector Type

Receptacle

Number Of Positions Loaded

All

Sıra Sayısı

2

Housing Color

Black
